BSFE050

BSFE050 is a compact ball-screw linear module for precision positioning and small automation applications.

Max Stroke 800 mm
Max Horizontal Payload 30 kg
Ball Screw C7 Ø12 mm
Lead Options 5 / 10 / 20 mm
Max Speed 250 / 500 / 1000 mm/s
Repeatability ±0.01 mm
Get a Quote

Ordering Method

BSFE050
Model
Body Model
  • BSFE050 = body model
L05
Lead
Ball Screw Lead
  • 5 / 10 / 20 mm
S100
Stroke
Stroke Travel Option
  • Sxxx = selected effective stroke
  • Standard range: 50-800 mm / 50 mm pitch
INL
Layout
Motor Layout
  • INL External in-line
  • PAR-R Right-side parallel
  • BOT Bottom-side parallel
  • PAR-L Left-side parallel
T10B
Motor
Motor Code Example
  • T = Delta
  • P = Panasonic
  • Y = Yaskawa
  • C = customer-provided
  • Recommended output: 100 W
  • B = with brake
C1
Sensor
Sensor Options
  • C = motor side
  • D = opposite motor side
  • E = none
  • 0 / 1 / 2 / 3 pcs = limit sensor quantity

Detailed Specifications

Performance
ParameterVariant / ConditionSpecification
Repeatability (mm)—±0.01 mm
Standard Stroke Range—50–800 mm / 50 mm pitch
Ball Screw Lead (mm)By lead option5 / 10 / 20 mm
Maximum Speed (mm/s)By lead option250 / 500 / 1000 mm/s
Rated Thrust (N)By lead option341 / 170 / 85 N
Maximum Payload (kg)Horizontal / VerticalHorizontal: 30 / 15 / 10 kg
Vertical: 10 / 5 / 2.5 kg
Components
ParameterSpecification
Drive TypeBall screw drive
Structure / EnvironmentBuilt-in guide / standard environment
Ball Screw SpecificationC7 Ø12 mm
Coupling7×8 mm
Motor Position OptionsINL / PAR-BOT / PAR-R / PAR-L
>

Motor Selection & Sensor Selection

Motor Selection
Motor Type
AC Servo Motor
Recommended Output
100 W
AC Voltage
220 V
Brake Option
With / without brake
Recommended Servo Motor Models
BrandBrake OptionServo Motor ModelServo Drive Model
DeltaWithout brakeECMA-C20401ESASD-B2-0121-B
DeltaWith brakeECMA-C20401SSASD-B2-0121-B
PanasonicWithout brakeMSMF012L1U2MMADLN05SG
PanasonicWith brakeMSMF012L1V2MMADLN05SG
YaskawaWithout brakeSGM7J01AFC6SSGD7SR90A00A002
YaskawaWith brakeSGM7J01AFC6ESGD7SR90A00A002
Motor Code / Selection Rule
ItemOptionsMeaning
Brand CodeT / P / Y / CT = Delta; P = Panasonic; Y = Yaskawa; C = customer-provided
Power Code10 = 100 WRecommended servo output for this model
Brake SuffixB = with brake; blank = without brakeBrake option in the motor code
Engineering NoteFinal motor selection should be confirmed according to payload, speed, stroke, installation direction, inertia matching and controller compatibility.
Sensor Selection
Home Sensor
EE-SX674 / EE-SX674P; PM-Y45 / PM-Y45P
Output Type
NPN / PNP
Voltage
DC 5–24 V
Mounting
External type
ItemOptionsMeaning
Origin SensorC / D / EC = motor side; D = opposite motor side; E = no origin sensor.
Limit Sensor0 / 1 / 2 / 3Limit sensor quantity is selected according to travel and controller requirements.
Sensor ModelEE-SX674 / EE-SX674P; PM-Y45 / PM-Y45PNPN / PNP output type is selected according to controller input type.
>

Load&Moment

Drawings

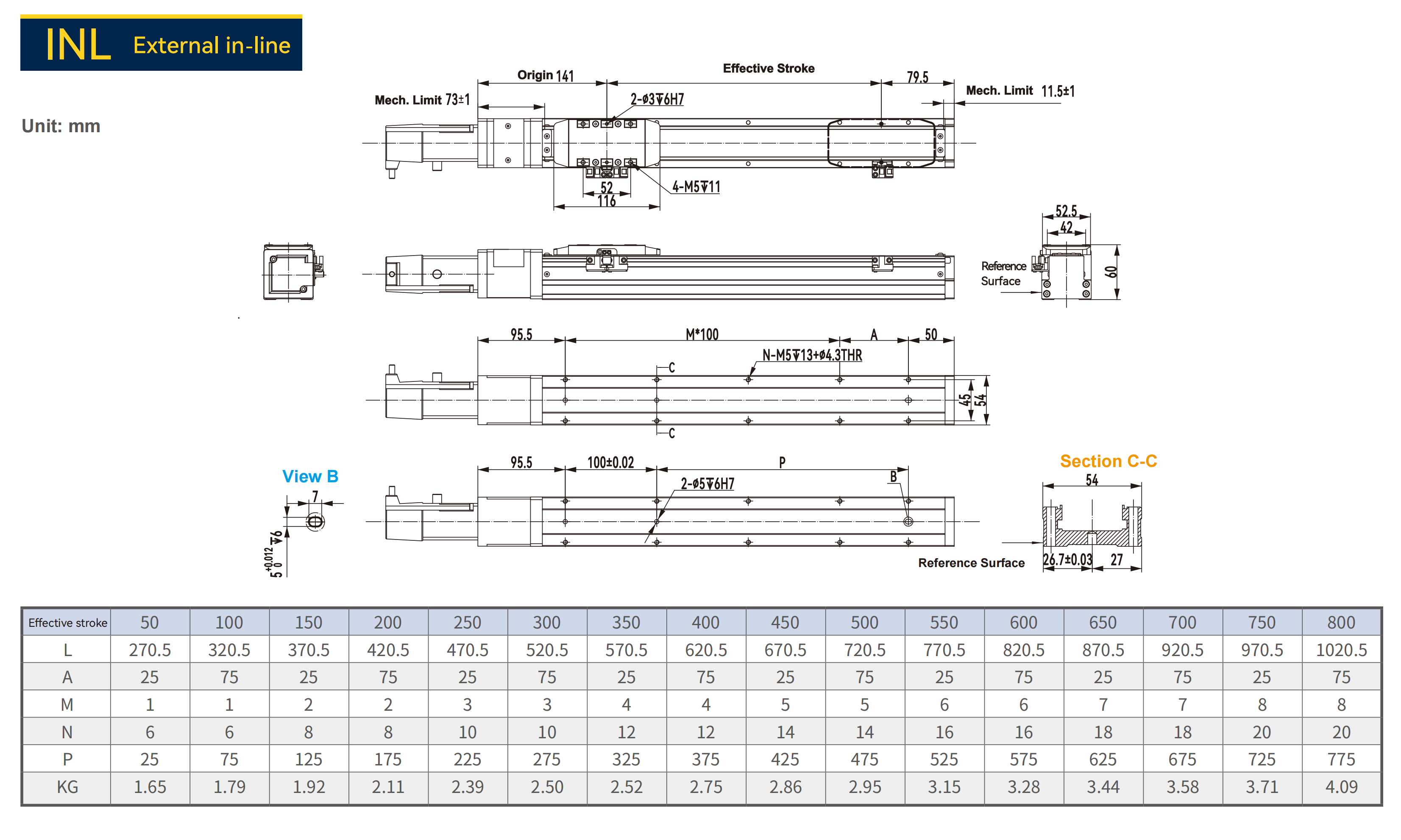

INL External in-line

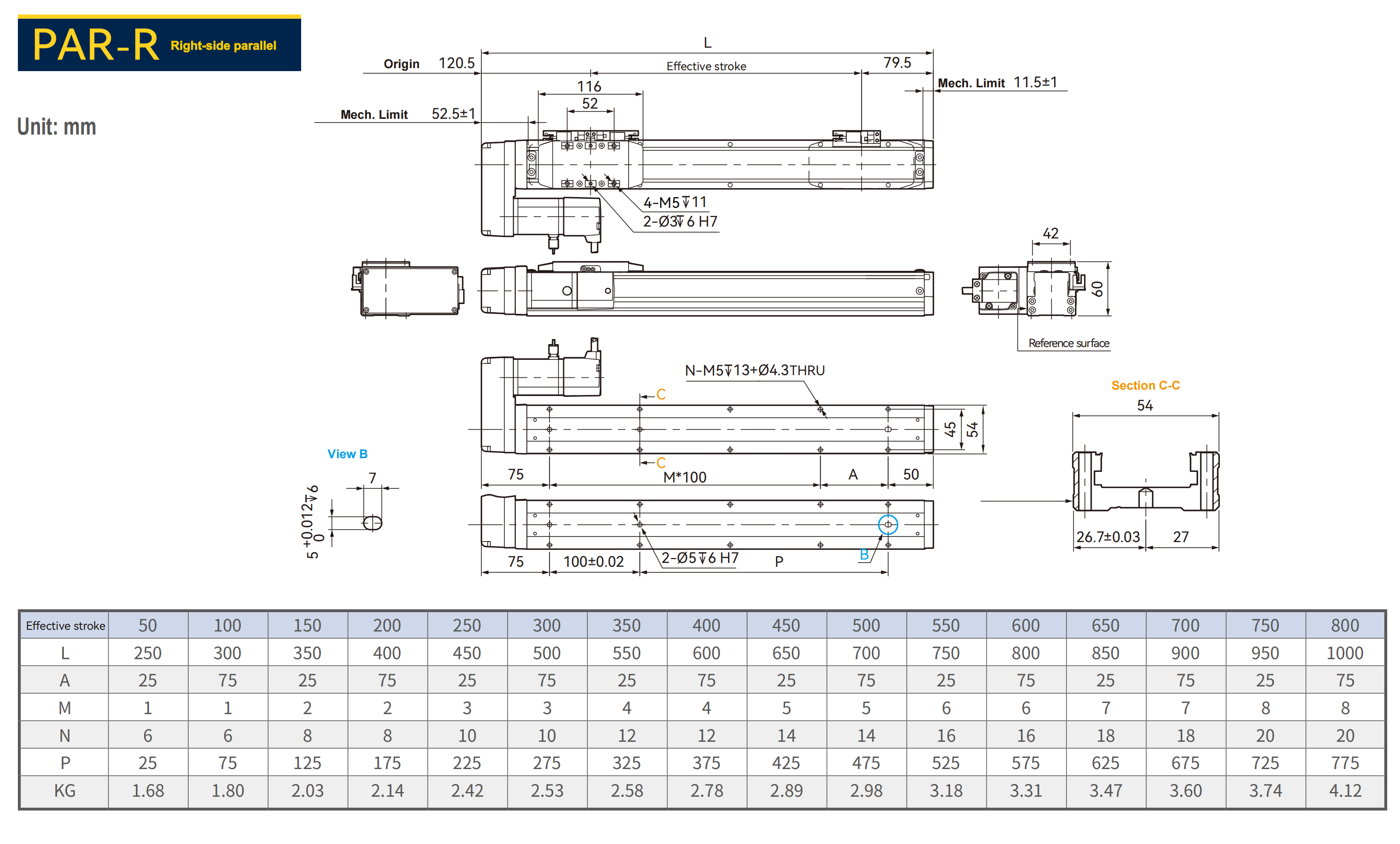

PAR-R Right-side parallel

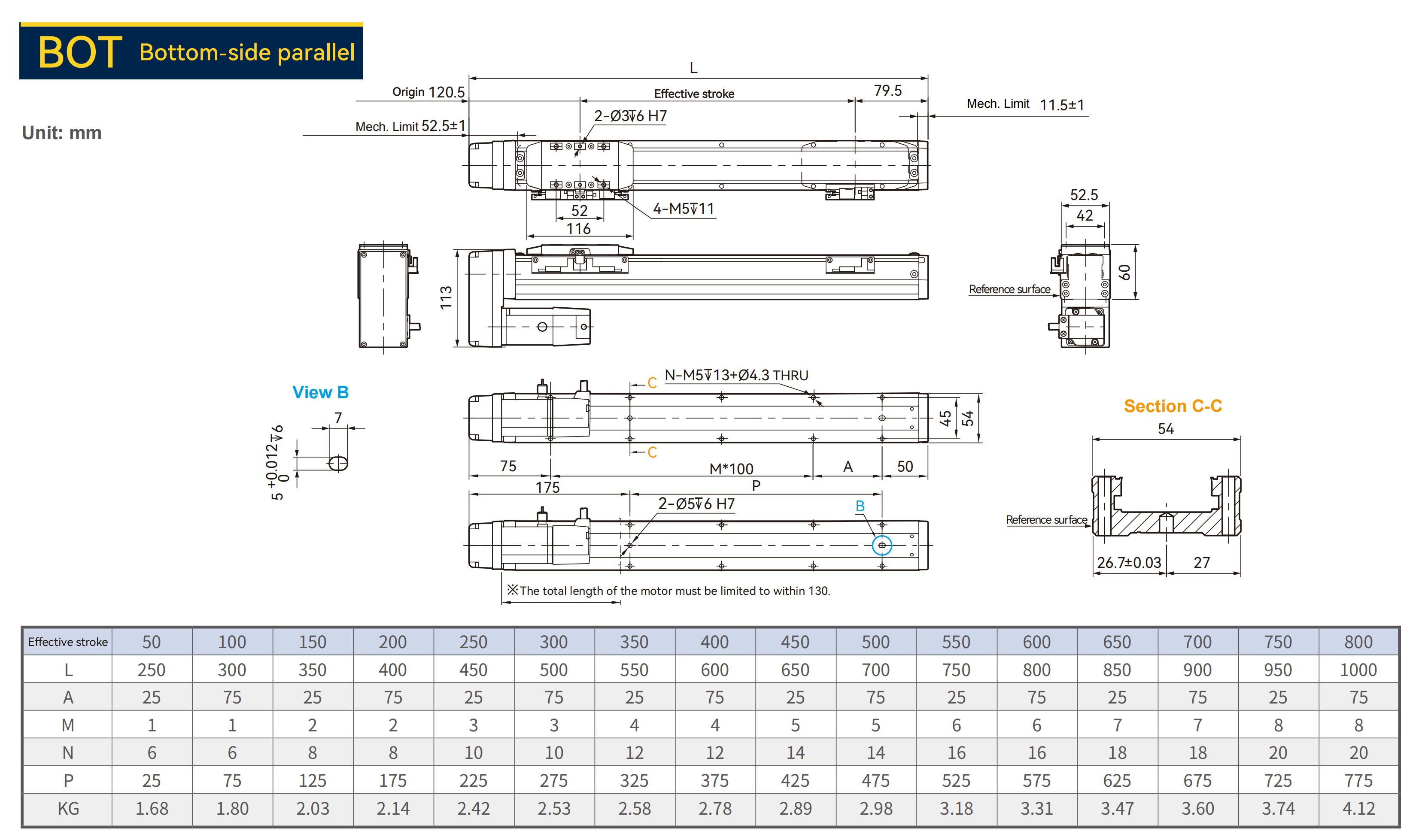

BOT Bottom-side parallel

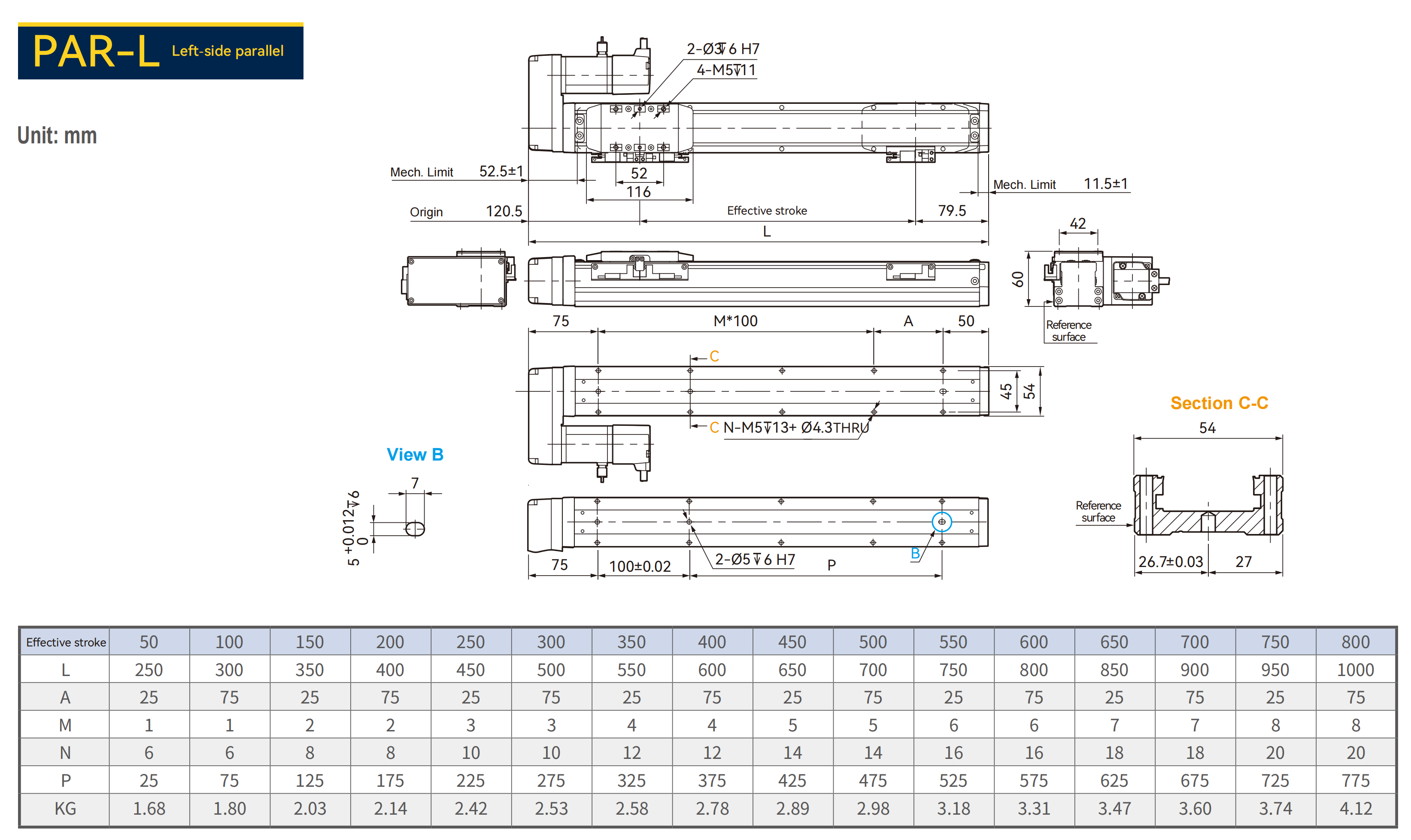

PAR-L Left-side parallel
