BTDD140

BTDD140 is a dual-drive timing-belt linear module for long-stroke transfer applications requiring compact width and stable belt-driven motion.

Max Stroke 2450 mm
Max Payload 10 kg Horizontal
Max Speed 2000 mm/s
Repeatability ±0.04 mm
Belt Lead 50 mm
Recommended Servo 200 W
Get a Quote

Ordering Method

BTDD140
Model
Body Model / Series / width
  • BTDD140 = body model
P50
Lead
Timing Belt
  • P = polyurethane
  • R = rubber
  • Lead: 50 mm
S100
Stroke
Stroke Travel Option
  • Sxxx = selected effective stroke
  • Standard range: 100–2450 mm / 50 mm pitch
R
Layout
Motor Layout
  • R Right-side
  • LL Lower-Left
  • UL Upper-Left
T20B
Motor
Motor Code Example
  • T = Delta
  • P = Panasonic
  • Y = Yaskawa
  • C = customer-provided
  • Recommended output: 200 W
  • B = with brake
C1
Sensor
Origin & Limit Sensors
  • C = motor side origin
  • D = opposite motor side
  • E = no origin sensor
  • 1 = one limit sensor set
  • 0 / 2 / 4 / 6 available

Detailed Specifications

Performance
ParameterVariant / ConditionSpecification
Repeatability (mm)—±0.04 mm
Standard Stroke RangeStandard product100–2450 mm / 50 mm pitch
Timing Belt Lead (mm)P50 / R5050 mm
Maximum Speed (mm/s)Rated motor speed2000 mm/s
Rated Thrust (N)Reference thrust81 N
Maximum Payload (kg)Horizontal / VerticalHorizontal: 10 kg
Vertical: disabled
Components
ParameterSpecification
Drive TypeDual timing-belt drive
Structure / EnvironmentDual-drive / semi-enclosed
Timing Belt MaterialP = polyurethane; R = rubber
Belt Width15 mm × 2 pcs
Linear GuideW15 × H12.5, 2 pcs
Motor Position OptionsR / UL / LL
>

Motor Selection & Sensor Selection

Motor Selection
Motor Type
AC Servo Motor
Recommended Output
200 W
AC Voltage
220 V
Brake Option
With / without brake
Recommended Servo Motor Models
BrandBrake OptionServo Motor ModelServo Drive Model
DeltaWithout brakeECMA-C20602RSASD-B2-0221-B
DeltaWith brakeECMA-C20602SSASD-B2-0221-B
PanasonicWithout brakeMHMF022L1U2MMADLN15SG
PanasonicWith brakeMHMF022L1V2MMADLN15SG
YaskawaWithout brakeSGM7J02AFC6SSGD7S1R6A00A002
YaskawaWith brakeSGM7J02AFC6ESGD7S1R6A00A002
Motor Code / Selection Rule
ItemOptionsMeaning
Brand CodeT / P / Y / CT = Delta; P = Panasonic; Y = Yaskawa; C = customer-provided
Power Code20 = 200 WRecommended servo output for this model
Brake SuffixB = with brake; blank = without brakeBrake option in the motor code
Engineering NoteThe catalogue lists vertical installation as disabled for this model. Confirm payload, speed, stroke, installation direction, inertia matching and controller compatibility before final motor selection.
Sensor Selection
Home Sensor
EE-SX672 / EE-SX672P
Output Type
NPN / PNP
Voltage
DC 5–24 V
Mounting
External type
ItemOptionsMeaning
Origin SensorC / D / EC = motor side; D = opposite motor side; E = no origin sensor.
Limit Sensor0 / 2 / 4 / 6Limit sensor quantity is selected according to travel and controller requirements.
Sensor ModelEE-SX672 / EE-SX672PNPN / PNP output type is selected according to controller input type.
>

Load&Moment

Drawings

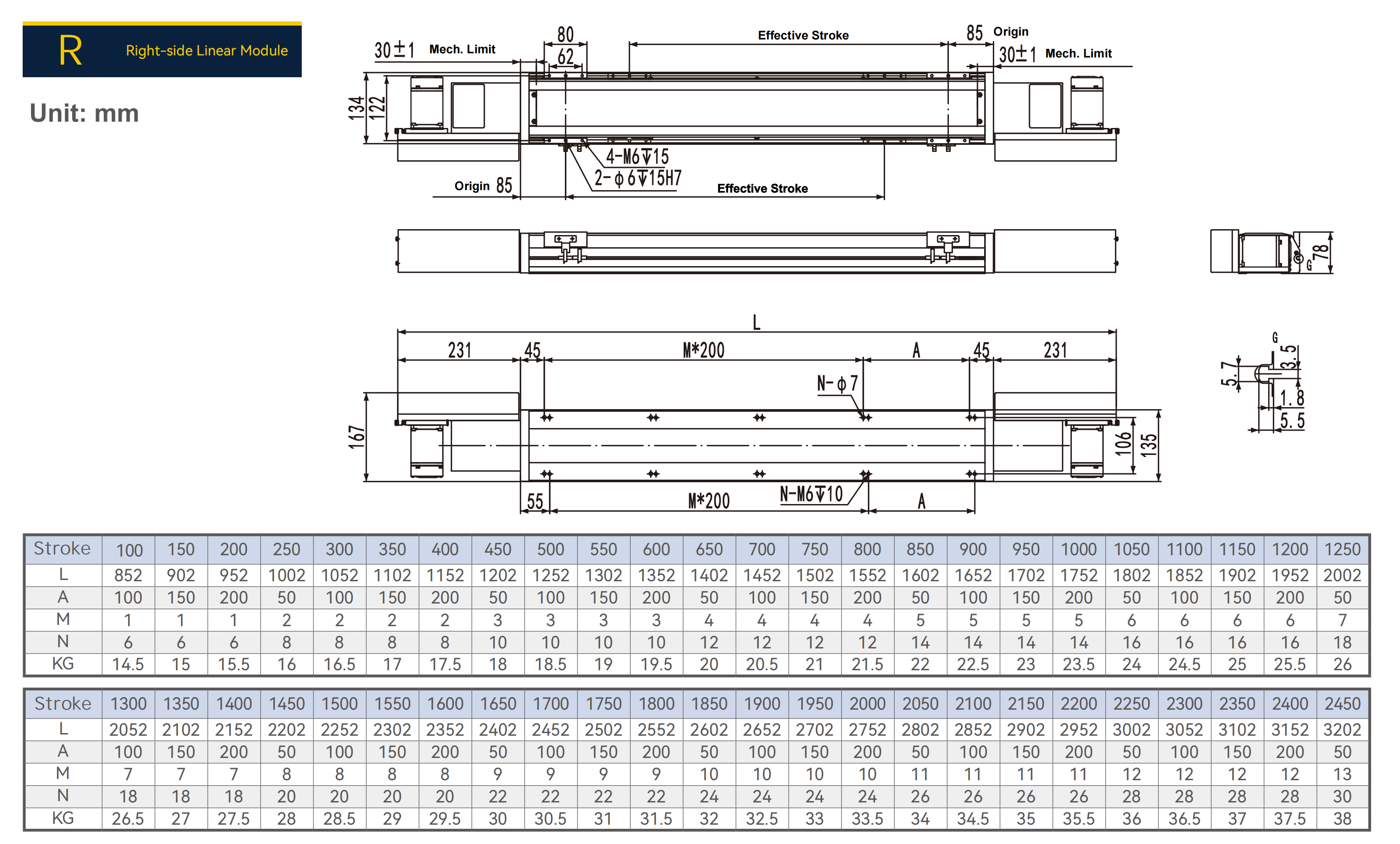

R Right Linear Module

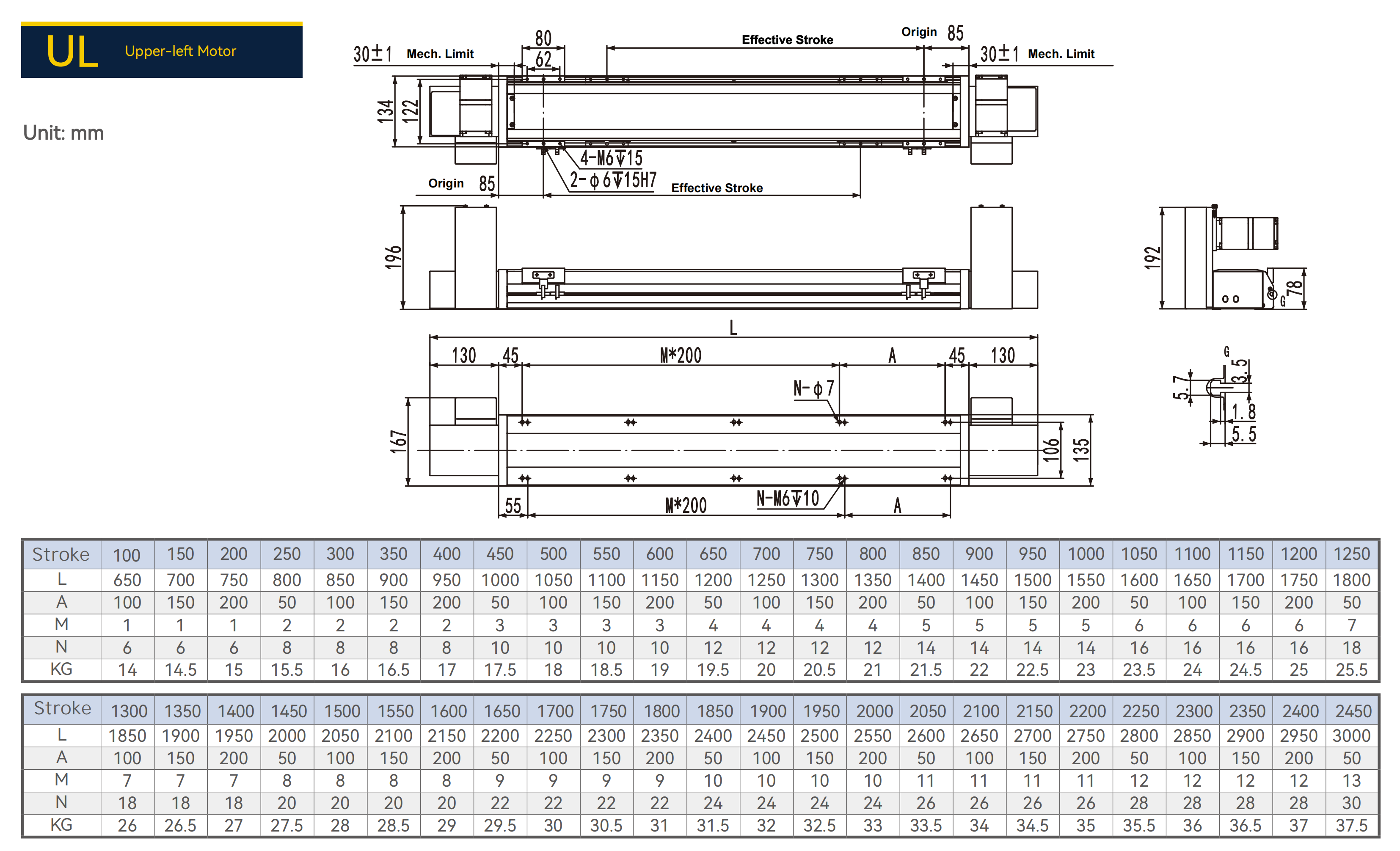

UL Motor Upper Left

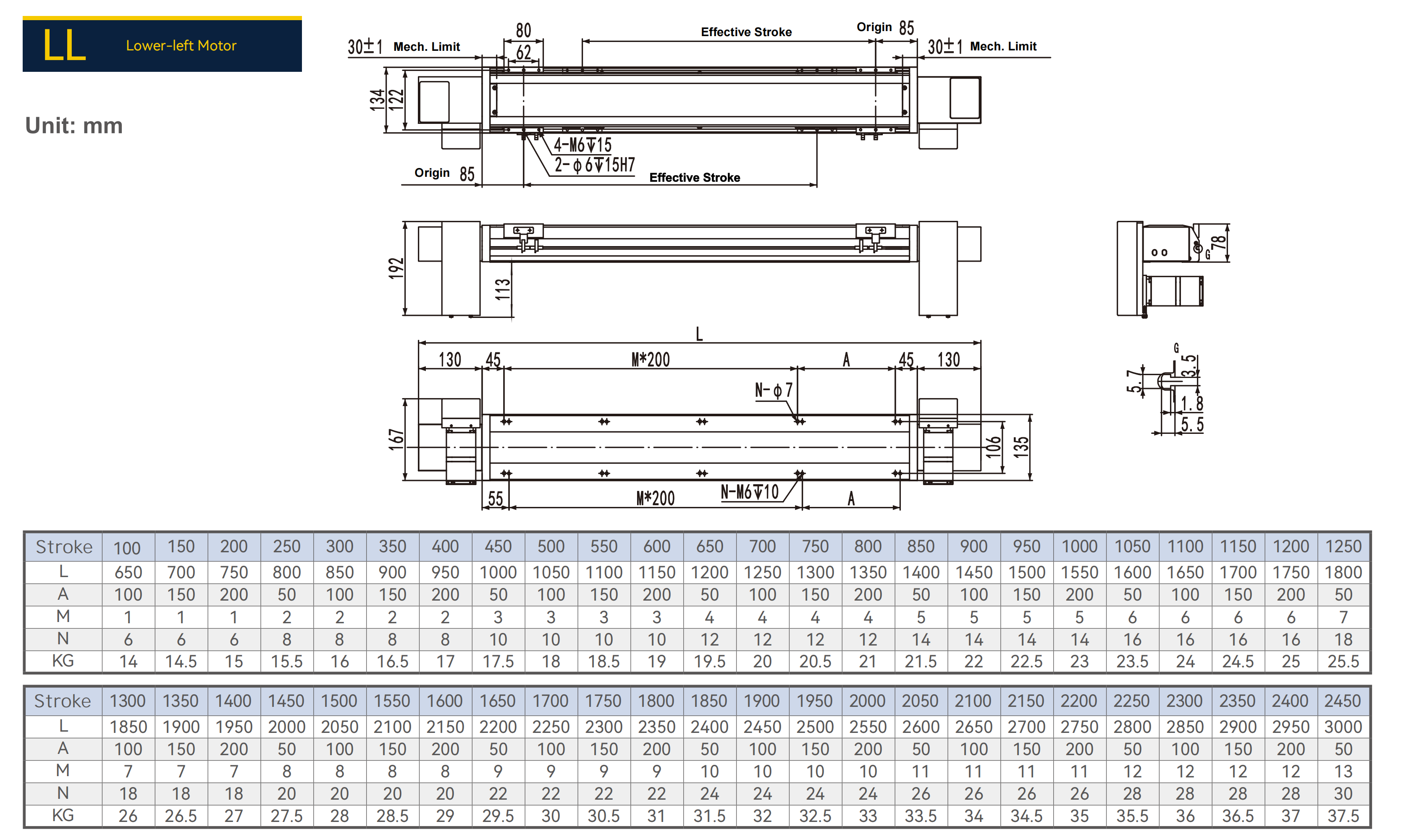

LL Motor Lower Left
