BTC060

BTC060 is a compact timing-belt linear module for high-speed transfer and long-stroke positioning. It is suitable for compact automation systems requiring smooth belt-driven motion.

Max Stroke 3000 mm
Max Payload 32 kg Horizontal
Max Speed 2160 mm/s
Repeatability ±0.05 mm
Belt Lead 13 / 26 / 43 / 65 / 130 mm
Recommended Servo 400 W
Get a Quote

Ordering Method

BTC060
Model
Body Model / Series / width
  • BTC060 = body model
P65
Lead
Timing Belt Lead
  • 13 / 26 / 43 / 65 / 130 mm
S450
Stroke
Stroke Travel Option
  • Sxxx = selected effective stroke
  • Standard range: 450–3000 mm / 50 mm pitch
TBR-L
Layout
Motor Layout
  • DC = directly coupled
  • TBR = timing-belt reduction
  • DC-R Right-side
  • DC-L Left-side
  • TBR-L Left-side
  • TBR-R Right-side
  • TBR-LL Lower-left
  • TBR-LR Lower-right
  • TBR-UL Upper-left
  • TBR-UR Upper-right
T40B
Motor
Motor Code Example
  • T = Delta
  • P = Panasonic
  • Y = Yaskawa
  • C = customer-provided
  • Recommended output: 400 W
  • B = with brake
C1
Sensor
Origin & Limit Sensors
  • C = motor side origin
  • D = opposite motor side
  • E = no origin sensor
  • 1 = one limit sensor
  • 0 / 1 / 2 / 3 available

Detailed Specifications

Performance
ParameterVariant / ConditionSpecification
Repeatability (mm)—±0.05 mm
Standard Stroke RangeStandard product450–3000 mm / 50 mm pitch
Timing Belt Lead (mm)P13 / P26 / P43 / P65 / P13013 / 26 / 43 / 65 / 130 mm
Reduction RatioP13 / P26 / P43 / P65 / P1301/10 / 1/5 / 1/3 / 1/2 / 1/1
Maximum Speed (mm/s)P13 / P26 / P43 / P65 / P130650 / 1300 / 2160 / 2000 / 2000 mm/s
Maximum Payload (kg)Horizontal / VerticalHorizontal: 32 / 14 / 10 / 8 / 5 kg
Vertical: – / – / 5 / 4 / 2 kg
Components
ParameterSpecification
Drive TypeTiming belt drive
Structure / EnvironmentCompact timing-belt structure
Timing Belt SpecificationP = polyurethane timing belt
Belt Width25 mm
Linear GuideW15 × H12.5, 1 pc
Motor Position OptionsL / R / BL / BR / LL / LR / UL / UR
>

Motor Selection & Sensor Selection

Motor Selection
Motor Type
AC Servo Motor
Recommended Output
400 W
AC Voltage
220 V
Brake Option
With / without brake
Recommended Servo Motor Models
BrandBrake OptionServo Motor ModelServo Drive Model
DeltaWithout brakeECMA-C20604RSASD-B2-0421-B
DeltaWith brakeECMA-C20604SSASD-B2-0421-B
PanasonicWithout brakeMHMF042L1U2MMBDLN25SG
PanasonicWith brakeMHMF042L1V2MMBDLN25SG
YaskawaWithout brakeSGM7J04AFC6SSGD7S2R8A00A002
YaskawaWith brakeSGM7J04AFC6ESGD7S2R8A00A002
Motor Code / Selection Rule
ItemOptionsMeaning
Brand CodeT / P / Y / CT = Delta; P = Panasonic; Y = Yaskawa; C = customer-provided
Power Code40 = 400 WRecommended servo output for this model
Brake SuffixB = with brake; blank = without brakeBrake option in the motor code
Engineering NoteUse a motor with brake where the application requires holding or vertical/inclined operation. Final motor selection should be confirmed according to payload, speed, stroke, installation direction, inertia matching and controller compatibility.
Sensor Selection
Home Sensor
EE-SX672 / EE-SX672P
Output Type
NPN / PNP
Voltage
DC 5–24 V
Mounting
External type
ItemOptionsMeaning
Origin SensorC / D / EC = motor side; D = opposite motor side; E = no origin sensor.
Limit Sensor0 / 1 / 2 / 3Limit sensor quantity is selected according to travel and controller requirements.
Sensor ModelEE-SX672 / EE-SX672PNPN / PNP output type is selected according to controller input type.
>

Load&Moment

Drawings

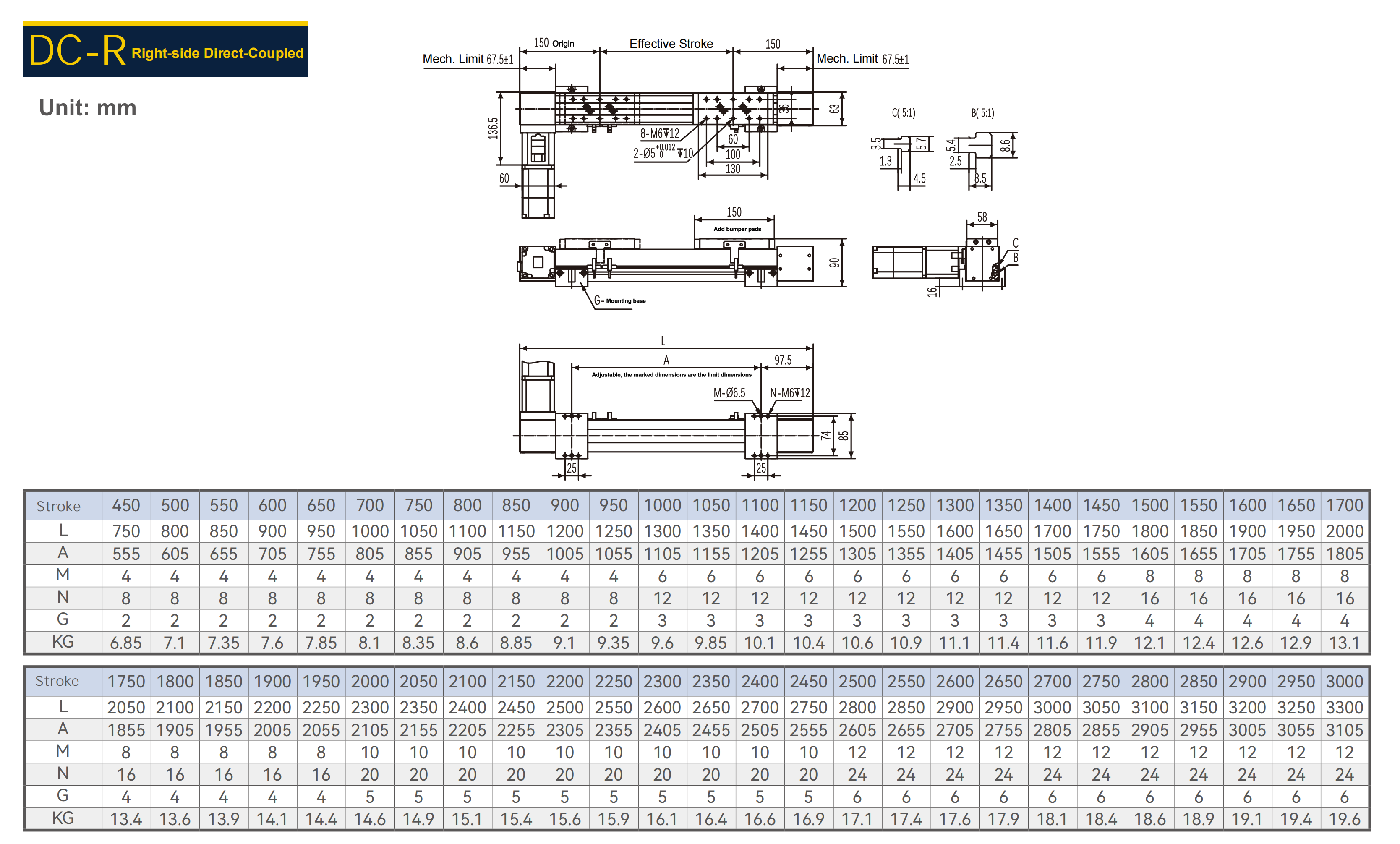

DC-R Right-side direct-coupled

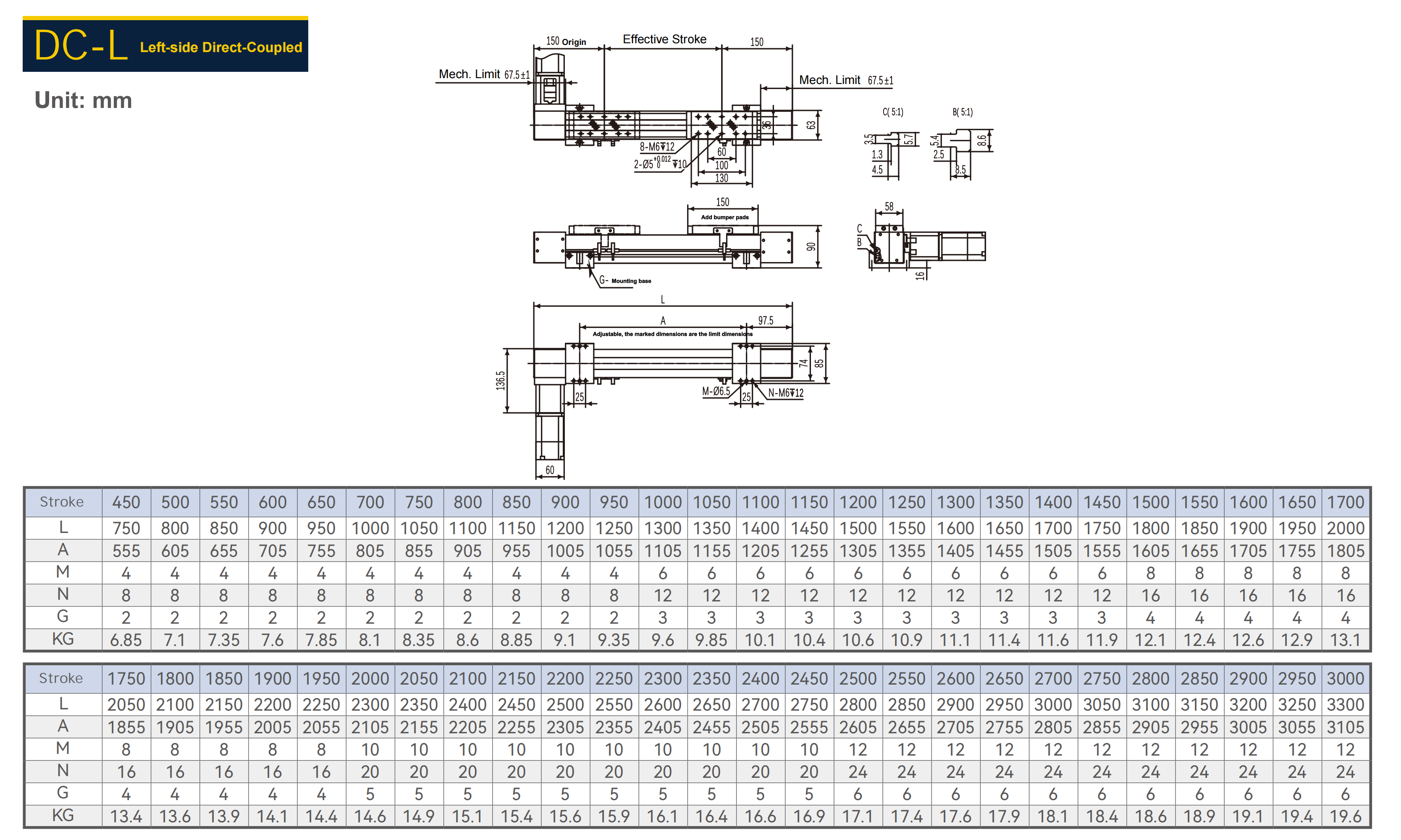

DC-L Left-side direct-coupled

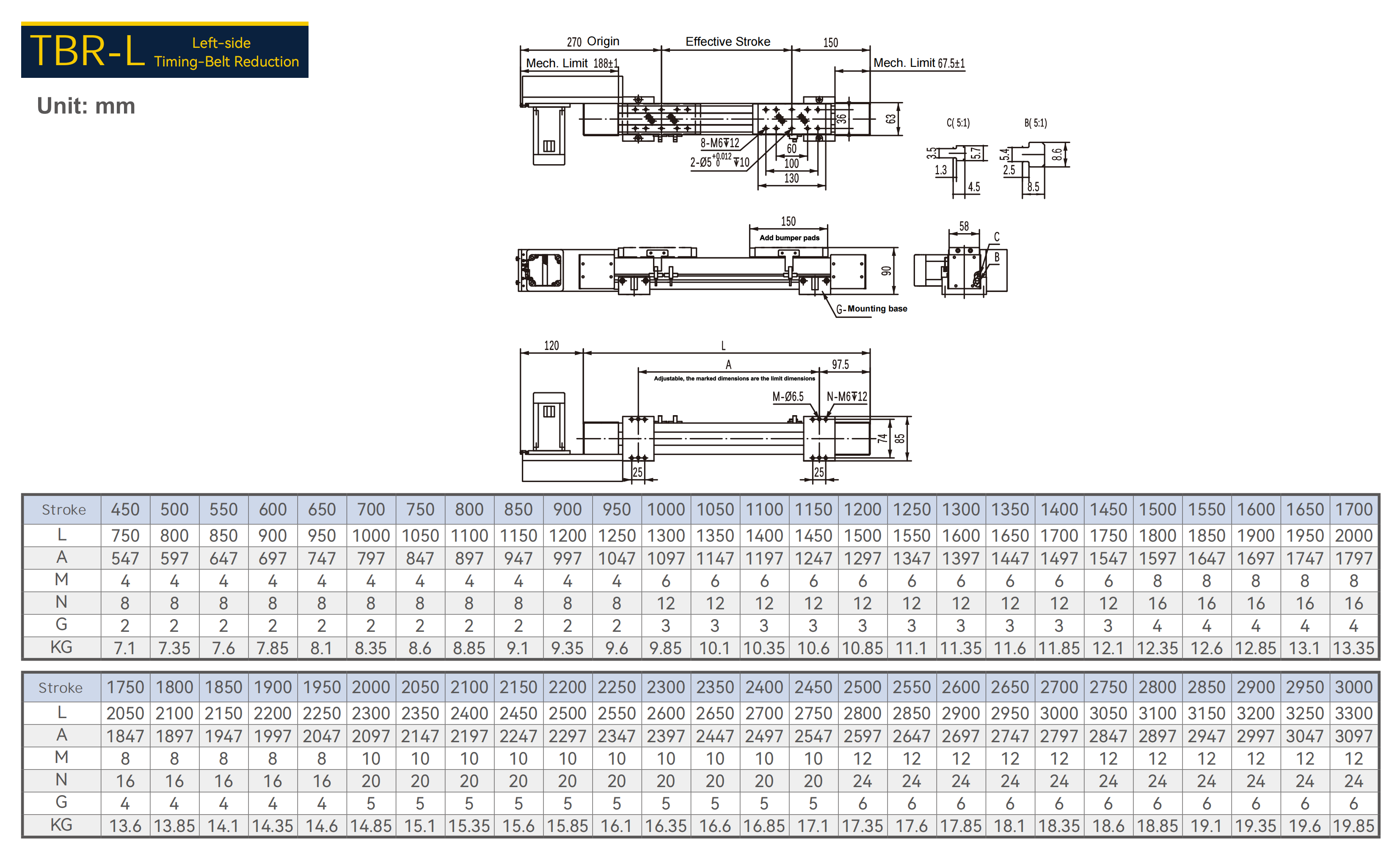

TBR-L Left-side

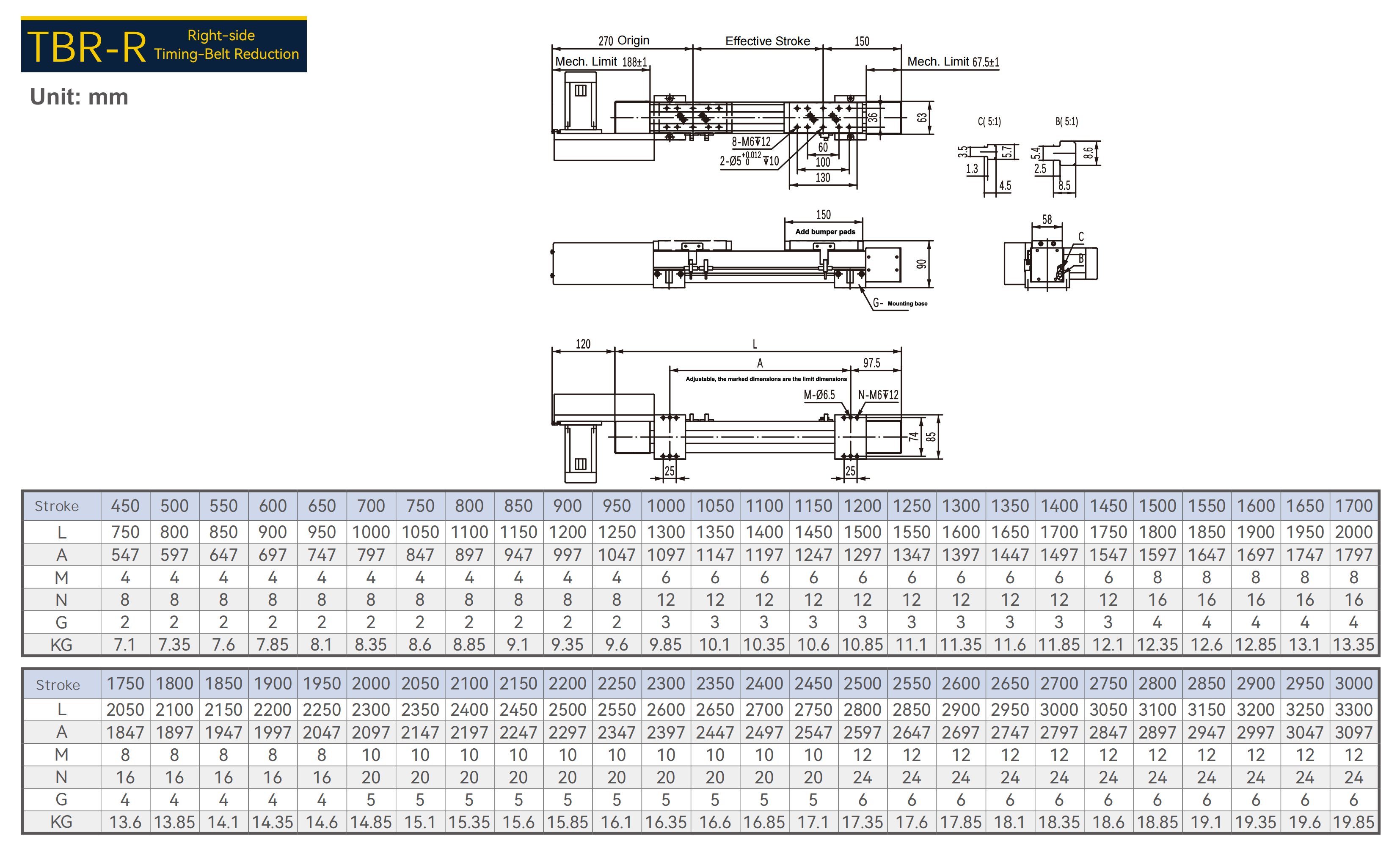

TBR-R Right-side

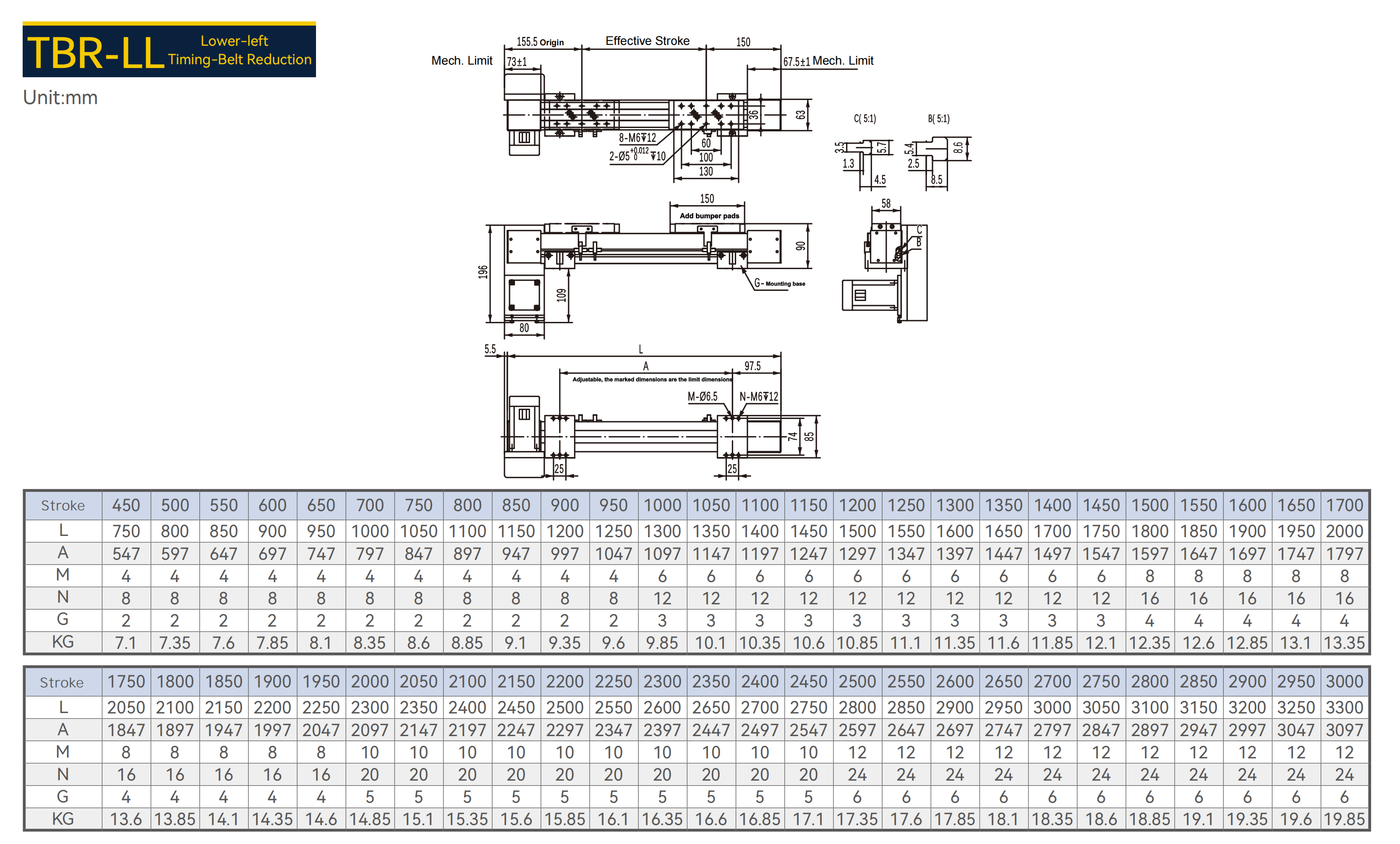

TBR-LL Lower-left

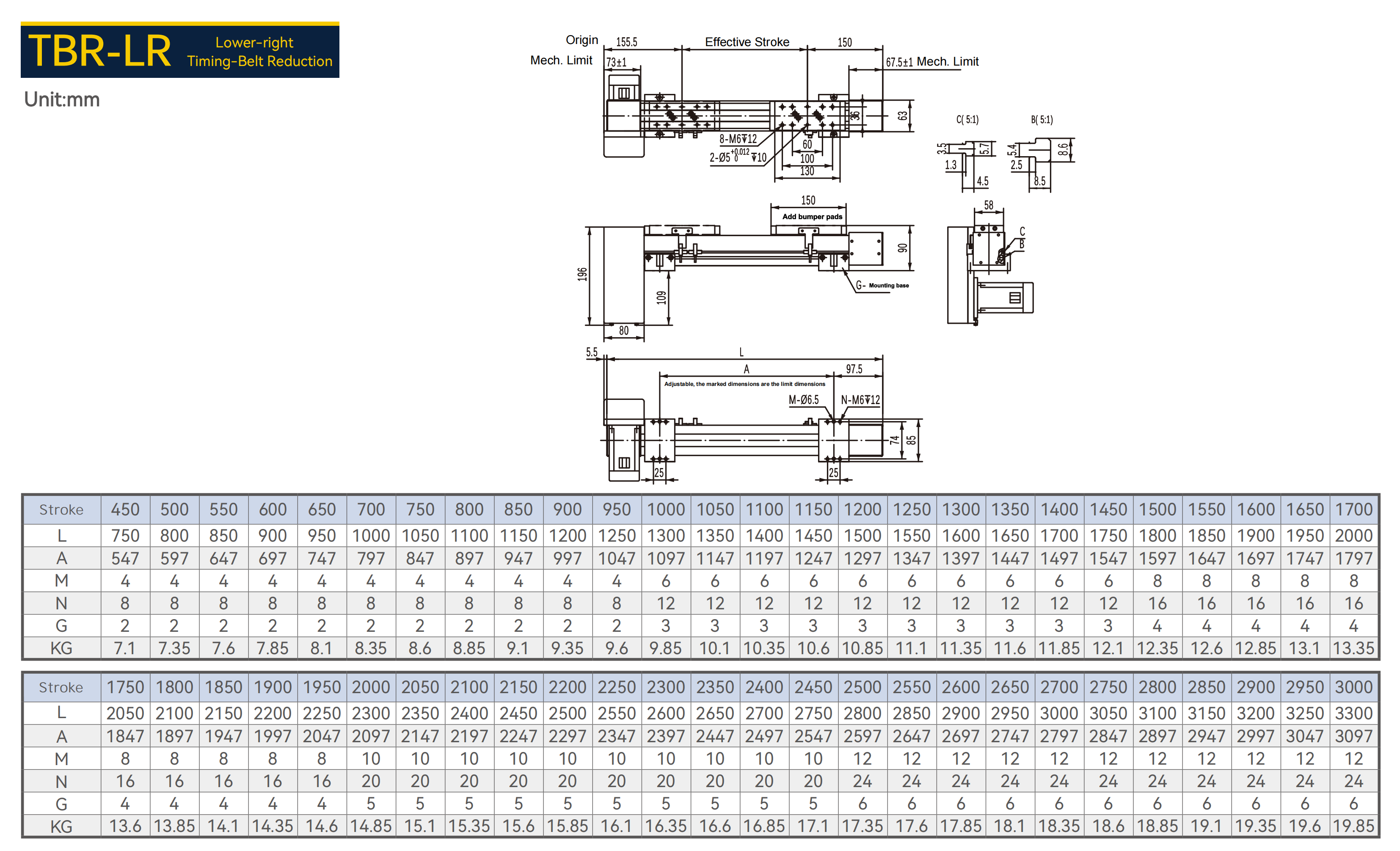

TBR-LR Lower-right

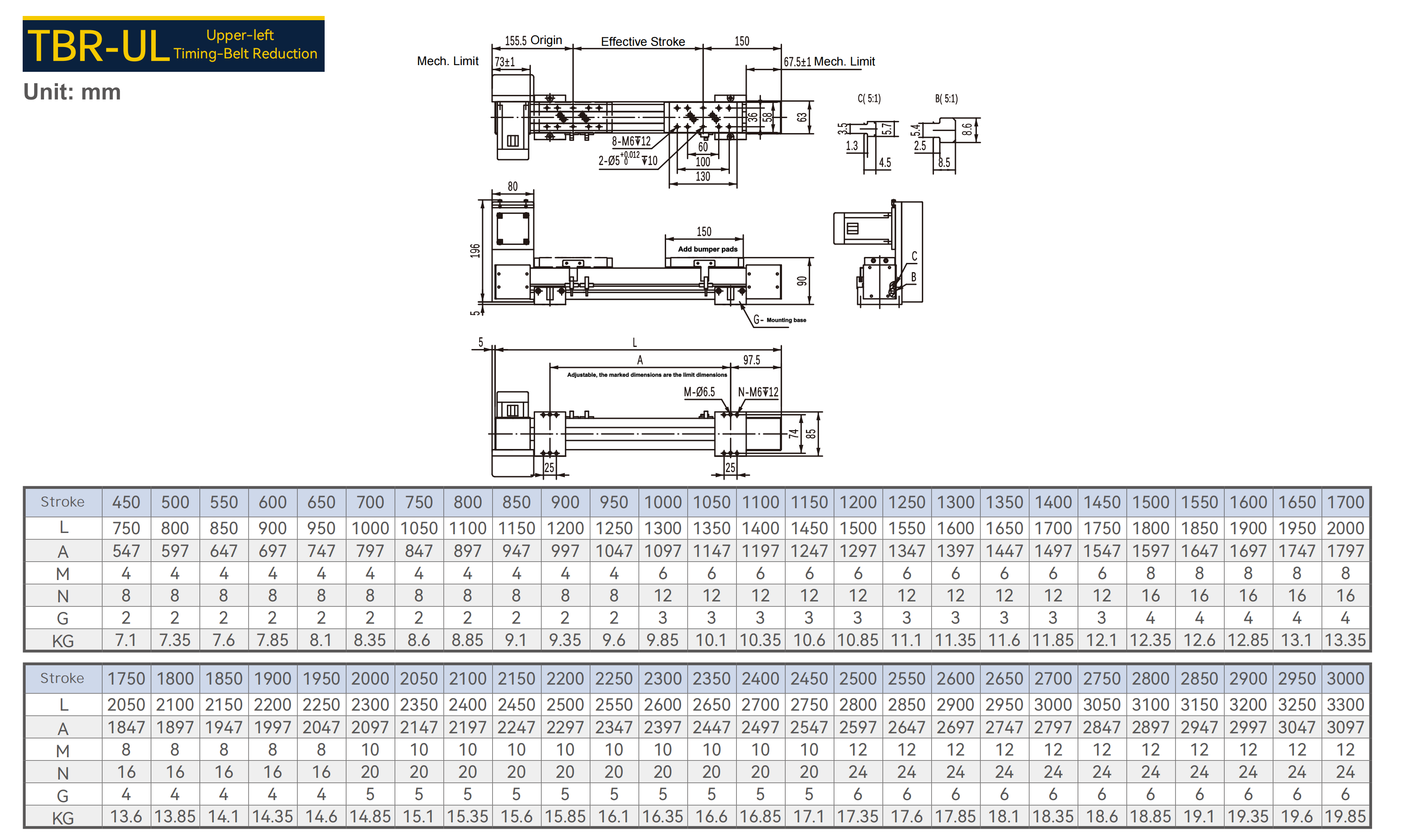

TBR-UL Upper-left
TBR-UR Upper-right
