1 AC050 Model
Model
- AC050 ball-screw electric cylinder.
AC050
AC050 is a ball screw electric linear actuator for thrust-driven linear motion. It is suitable for pushing, lifting, positioning and actuator applications requiring compact structure and controlled output force.
Stroke 800 mm
Max Speed 500 mm/s
Rated Torque 1.28 N·m
Ball Screw Ø12 mm
Max Thrust Bearing 3 kN
Body Size 52 mm × 52 mm
Ordering Method
AC050
S100
T
R5
M1
C1
P1
S
N
Model
Stroke
Anti-rotation
Lead
Installation
Output
Accuracy
Motor Type
Special
2 S100 Stroke
Stroke
- S100 = 100 mm stroke.
- Standard range: 0–800 mm;
- 50 mm interval.
3 T Anti-rotation
Anti-rotation
- T = anti-rotation;
- R = non-anti-rotation.
4 R5 Lead
Lead
- R5=5 mm;
- R10=10 mm.
5 M1 Installation
Installation
- M1 = front output flange;
- M2 = horizontal base;
- MX = user-defined.
6 C1 Output
Output
- C1 external thread;
- C2 internal thread;
- C3 fish-eye bearing;
- C4 double trunnion;
- C5 single trunnion;
- C6 floating joint;
- CX user-defined.
7 P1 Accuracy
Custom
- N = non-standard customization; omit for standard configuration.
8 S Motor Type
Motor Type
- S = direct; R = foldback.
9 N Special
Custom
- N = non-standard customization; omit for standard configuration.
Detailed Specifications
Performance
| Parameter | Specification |
|---|---|
| Maximum Stroke | 800 mm |
| Stroke Range | 0–800 mm |
| Stroke Pitch | 50 mm interval |
| Maximum Speed | 500 mm/s |
| Rated Torque | 1.28 N·m |
| Max Thrust Bearing | 3 kN |
Components & Options
| Item | Specification |
|---|---|
| Drive Type | Ball-screw electric cylinder |
| Ball Screw | Ø12 mm |
| Lead Options | R5=5 mm / R10=10 mm |
| Body Size | 52 mm × 52 mm |
| Rod Anti-Rotation | T = anti-rotation / R = non-anti-rotation |
| Installation Method | M1 = front output flange / M2 = horizontal base / MX = user-defined |
| Output Connection | C1 external thread / C2 internal thread / C3 fish-eye bearing / C4 double trunnion / C5 single trunnion / C6 floating joint / CX user-defined |
| Accuracy Grade | P1 = C7 cold-rolled / P2 = C5 precision-ground |
| Motor Layout | S = straight / R = foldback |
Motor Selection & Sensor Selection
Motor Layout Selection
| Drive Type Ball Screw | Motor Layout S / R | Lead Options R5 / R10 | Stroke Pitch 50 mm |
Motor Layout Meaning
| Code | Layout | Selection Meaning |
|---|---|---|

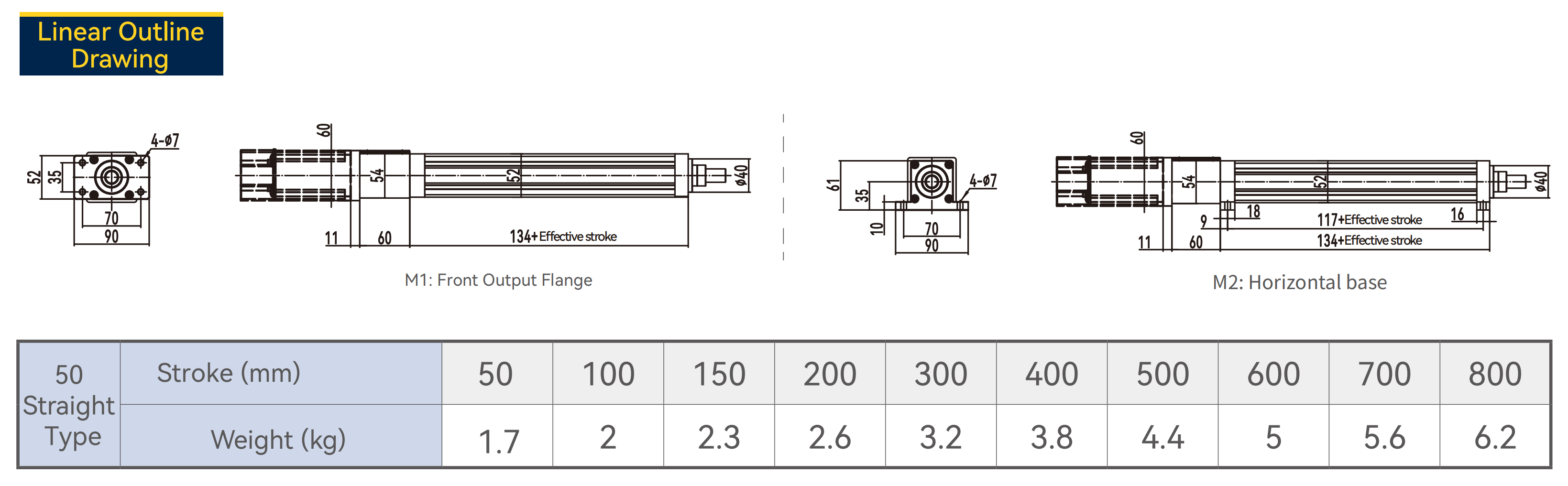

| S | Straight-line type | Motor is arranged in line with the cylinder body for direct axial installation. |

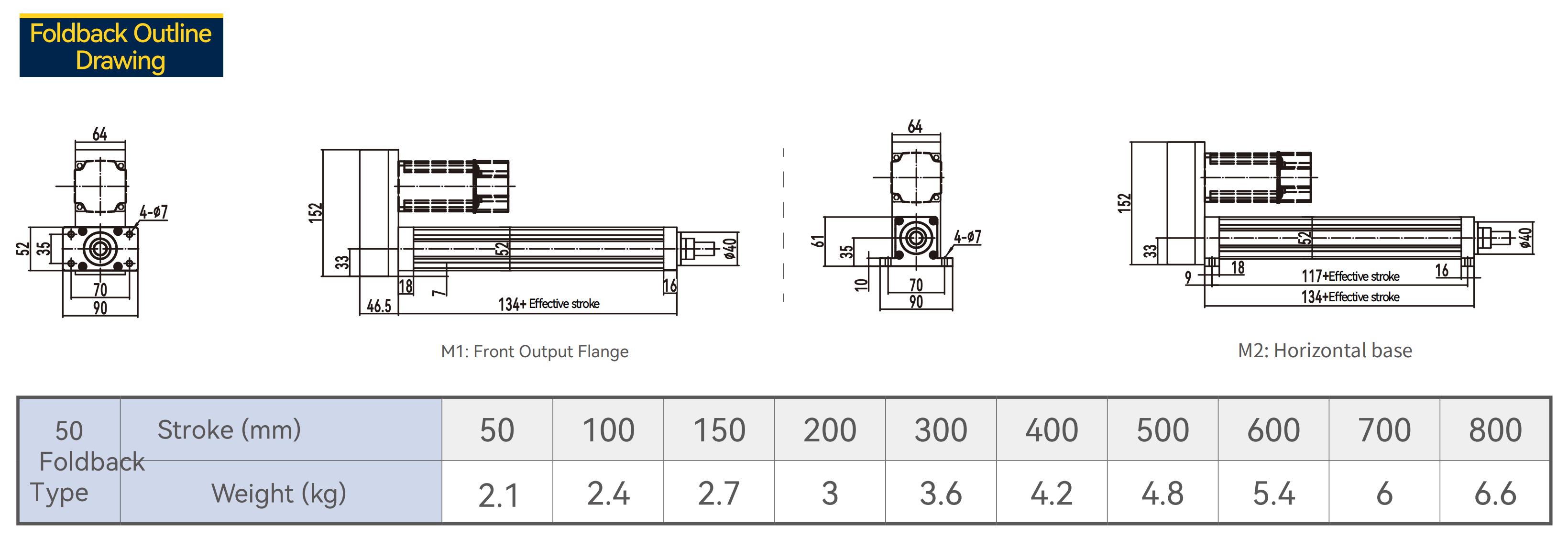

| R | Foldback / turnback type | Motor is arranged in a folded layout to reduce overall length or fit limited installation space. |
| ENGINEERING NOTE | Final motor, reducer or coupling configuration should be confirmed according to thrust, speed, stroke, lead, duty cycle and installation space. |
Installation & Output Selection
| Item | Available Options | Selection Meaning |
|---|---|---|
| Installation Method | M1 / M2 / MX | M1 = front output flange; M2 = horizontal base; MX = user-defined. |
| Output Connection | C1 / C2 / C3 / C4 / C5 / C6 / CX | External thread, internal thread, fish-eye bearing, trunnion, floating joint or custom output. |
| Accuracy Grade | P1 / P2 | P1 = C7 cold-rolled ball screw; P2 = C5 precision-ground ball screw. |
| Sensor Requirement | Project-dependent | Confirm origin / limit sensor requirements according to controller input, stroke and safety logic. |
