BSDD170

BSDD170 is a dual-drive ball screw linear module for applications requiring independent or synchronized dual-slide motion. It is suitable for customized transfer and handling mechanisms.

Max Stroke 900 mm
Max Horizontal Payload 110 kg
Ball Screw C7 Ø16 mm
Lead Options 5 / 10 / 20 / 32 mm
Max Speed 250 / 500 / 1000 / 1600 mm/s
Repeatability ±0.01 mm
Get a Quote

Ordering Method

BSDD170
Model
Body Model
  • BSDD170 = body model
L05
Lead
Ball Screw Lead
  • 5 / 10 / 20 / 32 mm
S100
Stroke
Stroke Travel Option
  • Sxxx = selected effective stroke
  • Standard range: 100-900 mm / 50 mm pitch
PAR-BOT
Layout
Motor Layout
  • PAR-BOT Bottom-side
  • PAR-R Right-side parallel
  • PAR-L Left-side parallel
T40B
Motor
Motor Code
  • T = Delta
  • P = Panasonic
  • Y = Yaskawa
  • C = customer provided
  • Recommended output: 400 W;
  • B = with brake
C1
Sensor
Sensor Options
  • C = motor side
  • D = opposite motor side
  • E = none
  • 0 / 1 / 2 / 3 pcs = limit sensor quantity

Detailed Specifications

Performance
ParameterCondition / TypeSpecification
Repeatability Repeatability ±0.01 mm
Stroke travel option Standard effective stroke 100-900 mm / 50 mm pitch
Ball screw lead Selectable lead 5 / 10 / 20 / 32 mm
Maximum speed By lead; rated motor speed reference 250 / 500 / 1000 / 1600 mm/s
Maximum horizontal payload By lead, same order as lead list 110 / 88 / 40 / 30 kg
Maximum vertical payload By lead, same order as lead list 33 / 22 / 10 / 8 kg
Components
ItemCondition / TypeSpecification
AC servo motor output Recommended output 400 W
Ball screw diameter C7 grade C7 Ø16 mm
Linear guide Series specification See size drawing / linear guide table
Coupling Series specification See motor connection drawing
Home sensor Outside type EE-SX672 / EE-SX672P
Body size Height × width 97 mm × 170 mm
Engineering NoteUse horizontal/vertical payload values according to lead selection and installation direction. Maximum speed may need to be reduced for long stroke applications due to ball screw resonance.
>

Motor Selection & Sensor Selection

Motor Selection
Motor Type
AC Servo Motor
Recommended Output
400 W
AC Voltage
220 V
Brake Option
With / without brake
Recommended Servo Motor Models
BrandBrake OptionServo Motor ModelServo Drive Model
DeltaWithout brakeECMA-C20604RSASD-B2-0421-B
DeltaWith brakeECMA-C20604SSASD-B2-0421-B
PanasonicWithout brakeMHMF042L1U2MMBDLN25SG
PanasonicWith brakeMHMF042L1V2MMBDLN25SG
YaskawaWithout brakeSGM7J04AFC6SSGD7S2R8A00A002
YaskawaWith brakeSGM7J04AFC6ESGD7S2R8A00A002
Motor Code / Selection Rule
ItemOptionsMeaning
Brand CodeT / P / Y / CT = Delta; P = Panasonic; Y = Yaskawa; C = customer-provided
Power Code40 = 400 WRecommended servo output for this model
Brake SuffixB = with brake; blank = without brakeBrake option in the motor code
Engineering NoteFinal motor selection should be confirmed according to payload, speed, stroke, installation direction, inertia matching and controller compatibility.
Sensor Selection
Home Sensor
EE-SX672 / EE-SX672P
Output Type
NPN / PNP
Voltage
DC 5–24 V
Mounting
External type
ItemOptionsMeaning
Origin SensorC / D / EC = motor side; D = opposite motor side; E = no origin sensor.
Limit Sensor0 / 1 / 2 / 3Limit sensor quantity is selected according to travel and controller requirements.
Sensor ModelEE-SX672 / EE-SX672PNPN / PNP output type is selected according to controller input type.
>

Load&Moment

Drawings

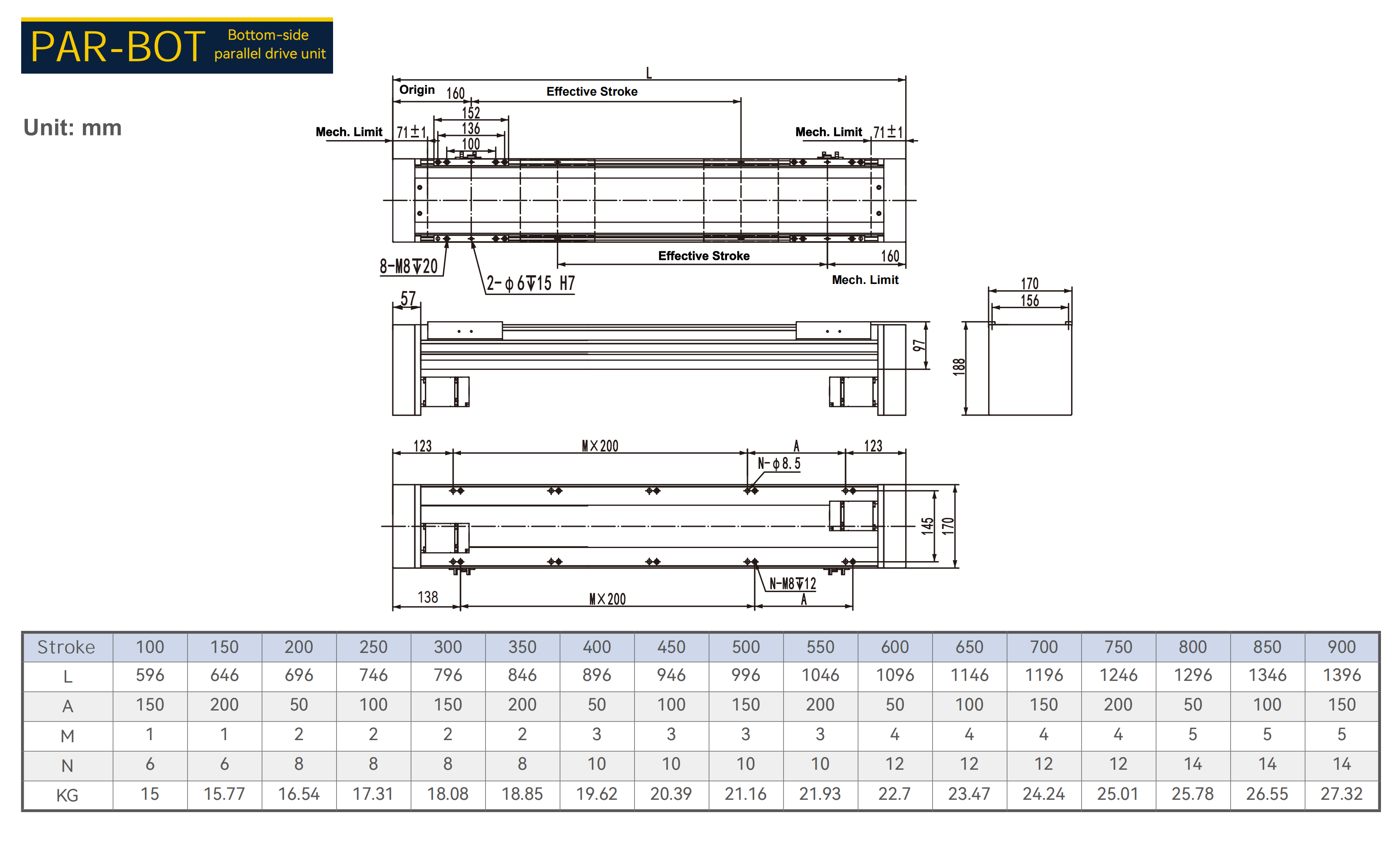

PAR-BOT Bottom-side

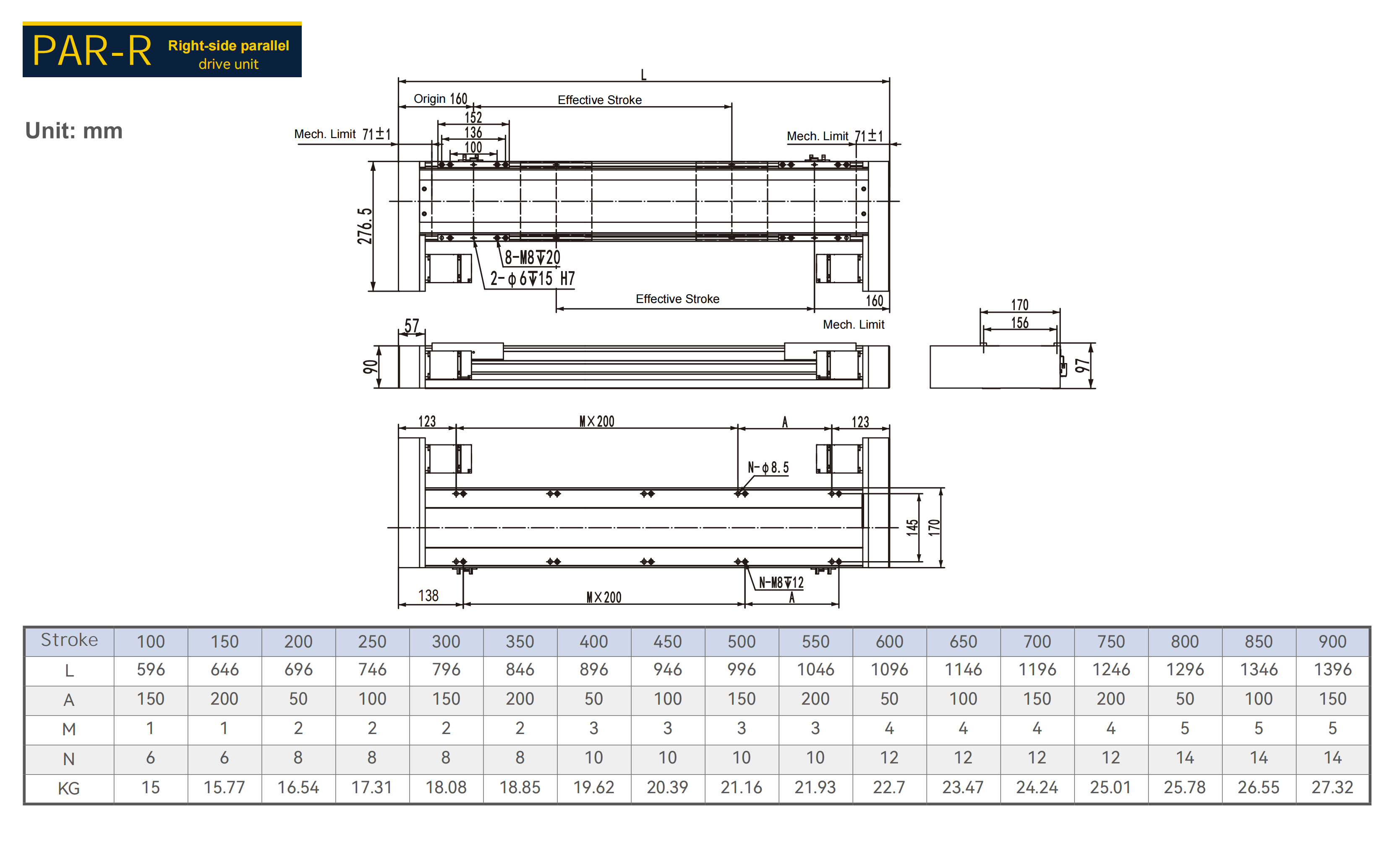

PAR-R Right-side parallel

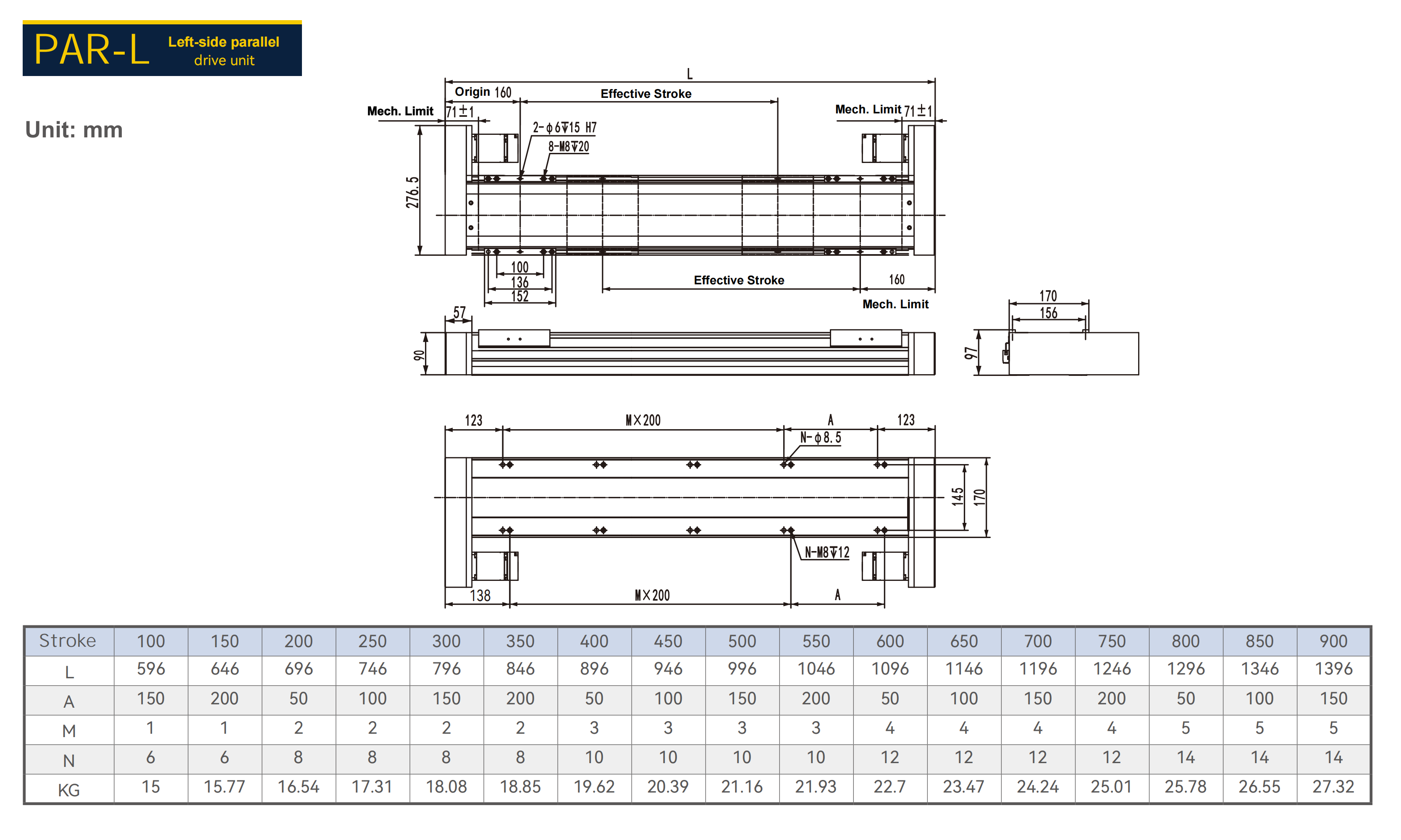

PAR-L Left-side parallel
