BSFD100

BSFD100 is a dust-protected ball-screw linear module for precise positioning in dusty or protected automation environments.

Max Stroke 1050 mm
Max Horizontal Payload 50 kg
Ball Screw C7 Ø16 mm
Lead Options 5 / 10 / 20 / 32 mm
Max Speed 250 / 500 / 1000 / 1600 mm/s
Repeatability ±0.01 mm
Get a Quote

Ordering Method

BSFD100
Model
Body Model / Series / width
  • BSFD100 = body model
L05
Lead
Lead Options
  • L05 / L10 / L20 / L32
  • Ball screw drive
S100
Stroke
Stroke Travel Option
  • Sxxx = selected effective stroke
  • Standard range: 100-1050 mm / 50 mm pitch
INL
Layout
Motor Layout
  • INL External in-line
T20B
Motor
Motor Code Example
  • T = Delta
  • P = Panasonic
  • Y = Yaskawa
  • C = customer-provided
  • Recommended output: 200 W;
  • B = with brake
C1
Sensor
Sensor Options
  • C = motor side
  • D = opposite motor side
  • E = none
  • 0 / 1 / 2 / 3 pcs = limit sensor quantity

Detailed Specifications

Performance
ParameterVariant / ConditionSpecification
Repeatability (mm)—±0.01 mm
Standard Stroke RangeStandard product100–1050 mm / 50 mm pitch
Ball Screw Lead (mm)L05 / L10 / L20 / L325 / 10 / 20 / 32 mm
Maximum Speed (mm/s)By ball screw lead250 / 500 / 1000 / 1600 mm/s
Rated Thrust (N)By ball screw lead683 / 341 / 174 / 108 N
Maximum Payload (kg)Horizontal / VerticalHorizontal: 50 / 30 / 18 / 5 kg
Vertical: 12 / 8 / 3 / — kg
Components
ParameterSpecification
Drive TypeBall screw drive
Structure / ProtectionDustproof / protected structure
Ball Screw SpecificationC7 Ø16 mm
Motor Position OptionsINL = external in-line
>

Motor Selection & Sensor Selection

Motor Selection
Motor Type
AC Servo Motor
Recommended Output
200 W
AC Voltage
220 V
Brake Option
With / without brake
Recommended Servo Motor Models
BrandBrake OptionServo Motor ModelServo Drive Model
DeltaWithout brakeECMA-C20602RSASD-B2-0221-B
DeltaWith brakeECMA-C20602SSASD-B2-0221-B
PanasonicWithout brakeMHMF022L1U2MMADLN15SG
PanasonicWith brakeMHMF022L1V2MMADLN15SG
YaskawaWithout brakeSGM7J02AFC6SSGD7S1R6A00A002
YaskawaWith brakeSGM7J02AFC6ESGD7S1R6A00A002
Motor Code / Selection Rule
ItemOptionsMeaning
Brand CodeT / P / Y / CT = Delta; P = Panasonic; Y = Yaskawa; C = customer-provided
Power Code20 = 200 WRecommended servo output for this model
Brake SuffixB = with brake; blank = without brakeBrake option in the motor code
Engineering NoteFinal motor selection should be confirmed according to payload, speed, stroke, installation direction, inertia matching and controller compatibility.
Sensor Selection
Home Sensor
EE-SX672 / EE-SX672P
Output Type
NPN / PNP
Voltage
DC 5–24 V
Mounting
External type
ItemOptionsMeaning
Origin SensorC / D / EC = motor side; D = opposite motor side; E = no origin sensor.
Limit Sensor0 / 1 / 2 / 3Limit sensor quantity is selected according to travel and controller requirements.
Sensor ModelEE-SX672 / EE-SX672PNPN / PNP output type is selected according to controller input type.
>

Load&Moment

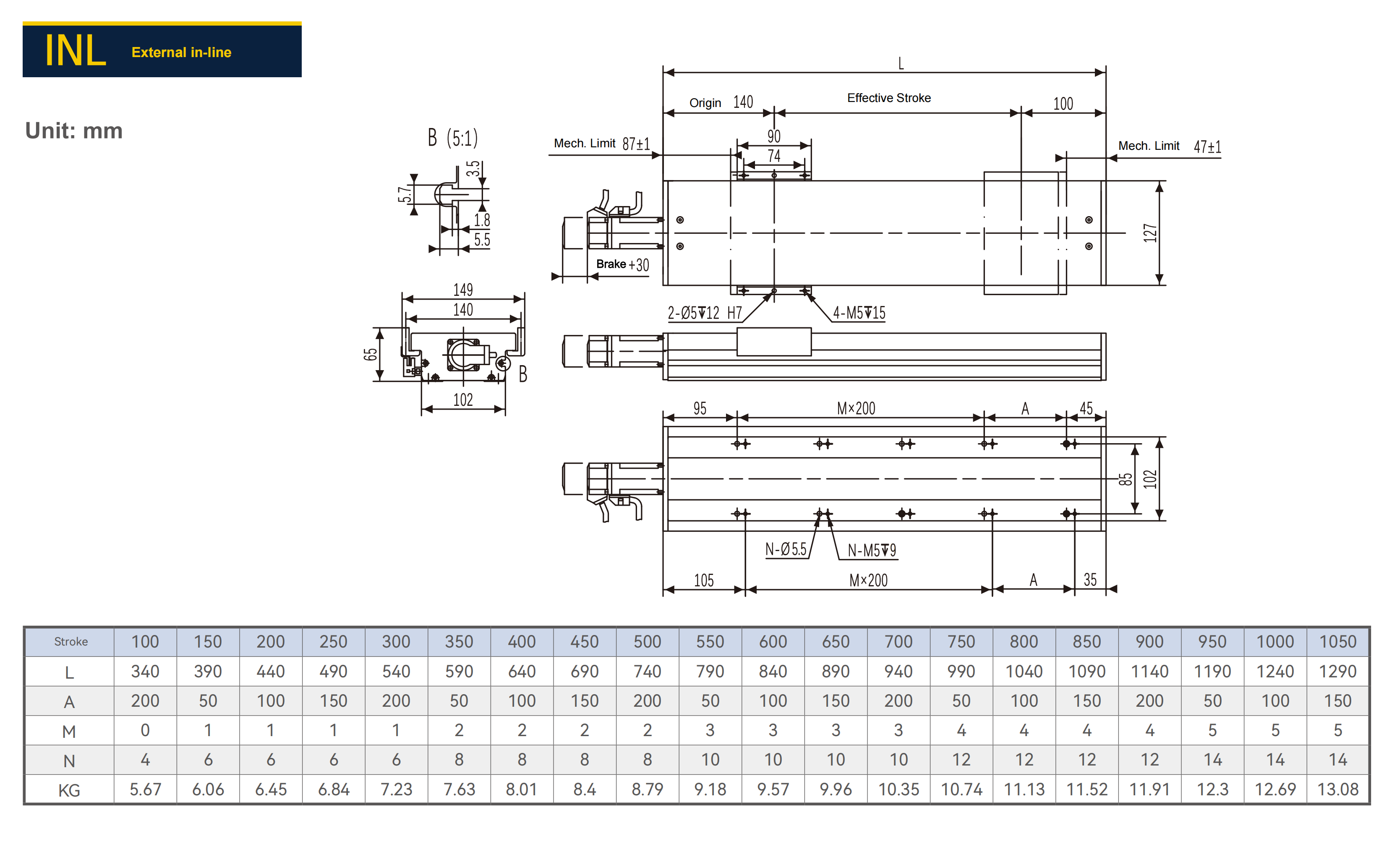

Drawings

INL External in-line
