BSF170

BSF170 is an enclosed ball-screw linear module for precise motion in clean or protected automation applications.

Max Stroke 1250 mm
Max Horizontal Payload 120 kg
Ball Screw C7 Ø20 mm
Lead Options 5 / 10 / 20 / 40 mm
Max Speed 250 / 500 / 1000 / 2000 mm/s
Repeatability ±0.01 mm
Get a Quote

Ordering Method

BSF170
Model
Body Model / Series / width
  • BSF170 = body model
L05
Lead
Lead Options
  • L05 / L10 / L20 / L40
  • Ball screw drive
S100
Stroke
Stroke Travel Option
  • Sxxx = selected effective stroke
  • Standard range: 100-1250 mm / 50 mm pitch
INL
Layout
Motor Layout / Drawing Options
  • INL External in-line
  • PAR-R Right-side parallel
  • PAR-BOT Bottom-side parallel
  • PAR-L Left-side parallel
T75B
Motor
Motor Code Example
  • T = Delta
  • P = Panasonic
  • Y = Yaskawa
  • C = customer-provided
  • Recommended output: 750 W
  • B = with brake
C1
Sensor
Sensor Options
  • C = motor side
  • D = opposite motor side
  • E = none
  • 0 / 1 / 2 / 3 pcs = limit sensor quantity

Detailed Specifications

Performance
ParameterVariant / ConditionSpecification
Repeatability (mm)—±0.01 mm
Standard Stroke Range—100–1250 mm / 50 mm pitch
Ball Screw Lead (mm)By lead option5 / 10 / 20 / 40 mm
Maximum Speed (mm/s)By lead option250 / 500 / 1000 / 2000 mm/s
Rated Thrust (N)By lead option2563 / 1281 / 640 / 320 N
Maximum Payload (kg)Horizontal / VerticalHorizontal: 120 / 120 / 83 / 50 kg
Vertical: 50 / 40 / 25 / 10 kg
Components
ParameterSpecification
Drive TypeBall screw drive
Structure / EnvironmentFully enclosed / clean environment
Ball Screw SpecificationC7 Ø20 mm
Linear GuideW20 × H15, 2 pcs
Coupling12×19 mm
Motor Position OptionsINL / PAR-BOT / PAR-R / PAR-L
>

Motor Selection & Sensor Selection

Motor Selection
Motor Type
AC Servo Motor
Recommended Output
750 W
AC Voltage
220 V
Brake Option
With / without brake
Recommended Servo Motor Models
BrandBrake OptionServo Motor ModelServo Drive Model
DeltaWithout brakeECMA-C20807RSASD-B2-0721-B
DeltaWith brakeECMA-C20807SSASD-B2-0721-B
PanasonicWithout brakeMHMF082L1U2MMCDLN35SG
PanasonicWith brakeMHMF082L1V2MMCDLN35SG
YaskawaWithout brakeSGM7J08AFC6SSGD7S5R5A00A002
YaskawaWith brakeSGM7J08AFC6ESGD7S5R5A00A002
Motor Code / Selection Rule
ItemOptionsMeaning
Brand CodeT / P / Y / CT = Delta; P = Panasonic; Y = Yaskawa; C = customer-provided
Power Code75 = 750 WRecommended servo output for this model
Brake SuffixB = with brake; blank = without brakeBrake option in the motor code
Engineering NoteFinal motor selection should be confirmed according to payload, speed, stroke, installation direction, inertia matching and controller compatibility.
Sensor Selection
Home Sensor
EE-SX672 / EE-SX674
Output Type
NPN / PNP
Voltage
DC 5–24 V
Mounting
External / built-in
ItemOptionsMeaning
Origin SensorC / D / EC = motor side; D = opposite motor side; E = no origin sensor.
Limit Sensor0 / 1 / 2 / 3Limit sensor quantity is selected according to travel and controller requirements.
External Sensor ModelEE-SX672 / EE-SX672PEE-SX672 = NPN; EE-SX672P = PNP.
Built-in Sensor ModelEE-SX674 / EE-SX674PEE-SX674 = NPN; EE-SX674P = PNP.
>

Load&Moment

Drawings

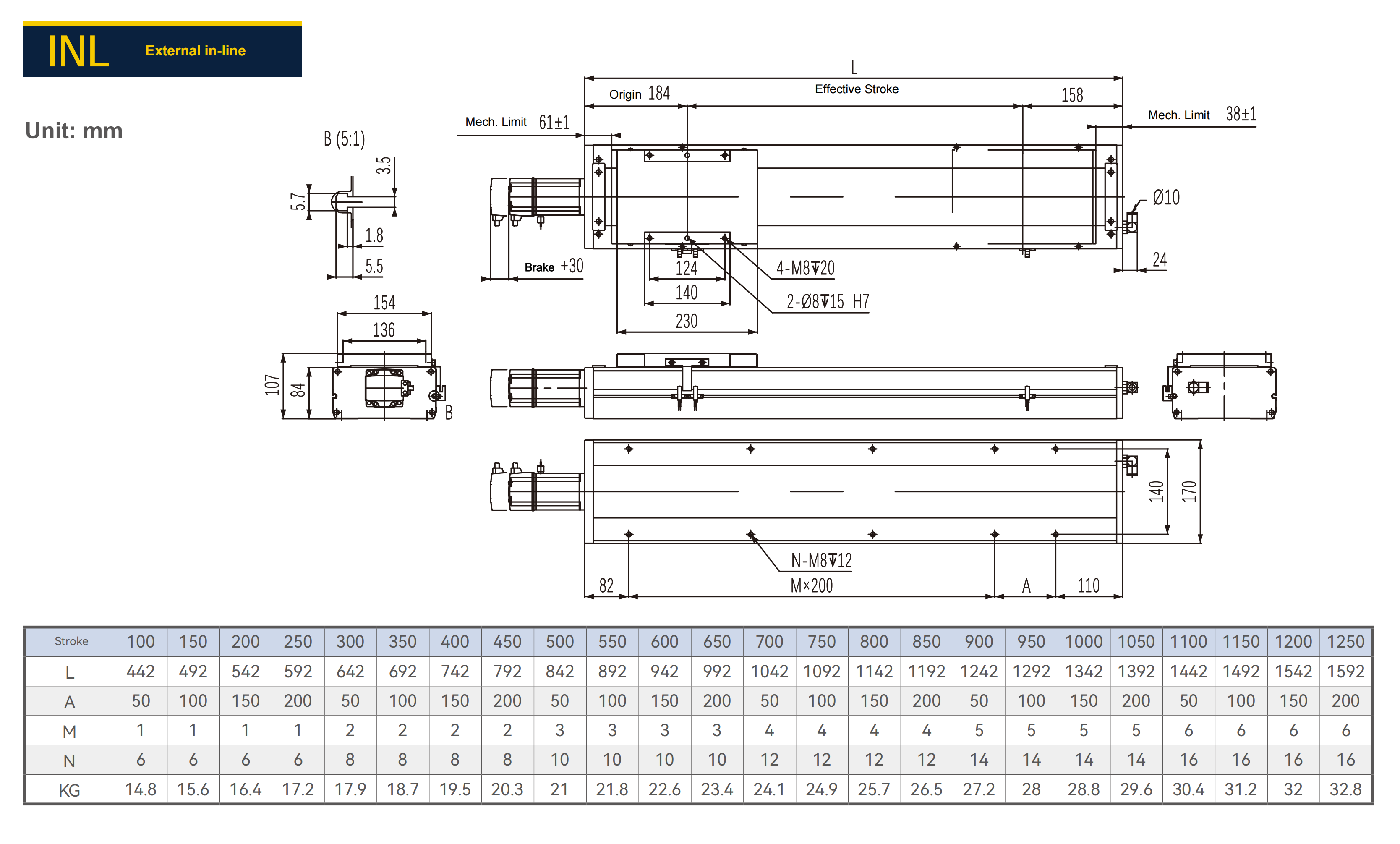

INL External in-line

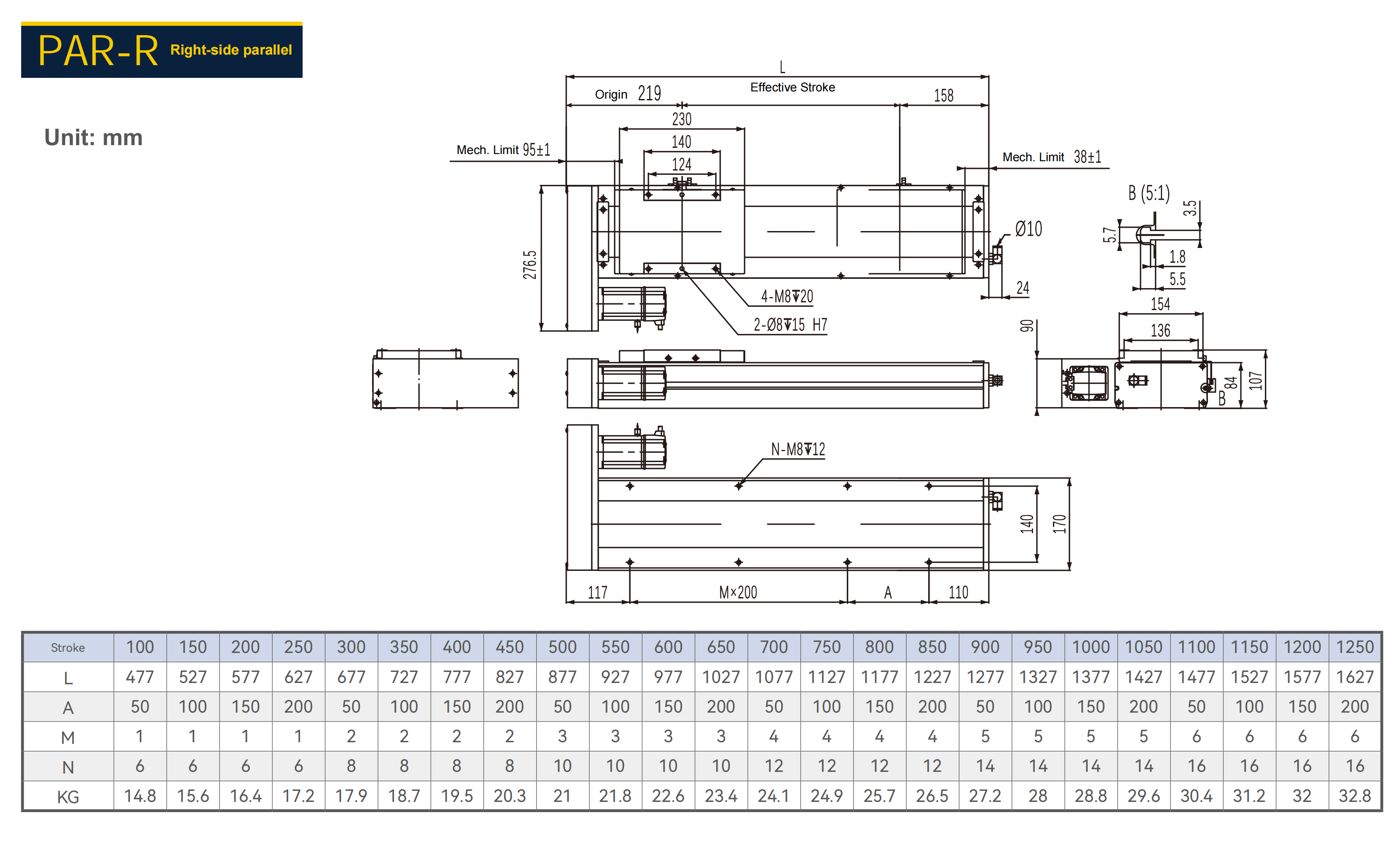

PAR-R Right-side parallel

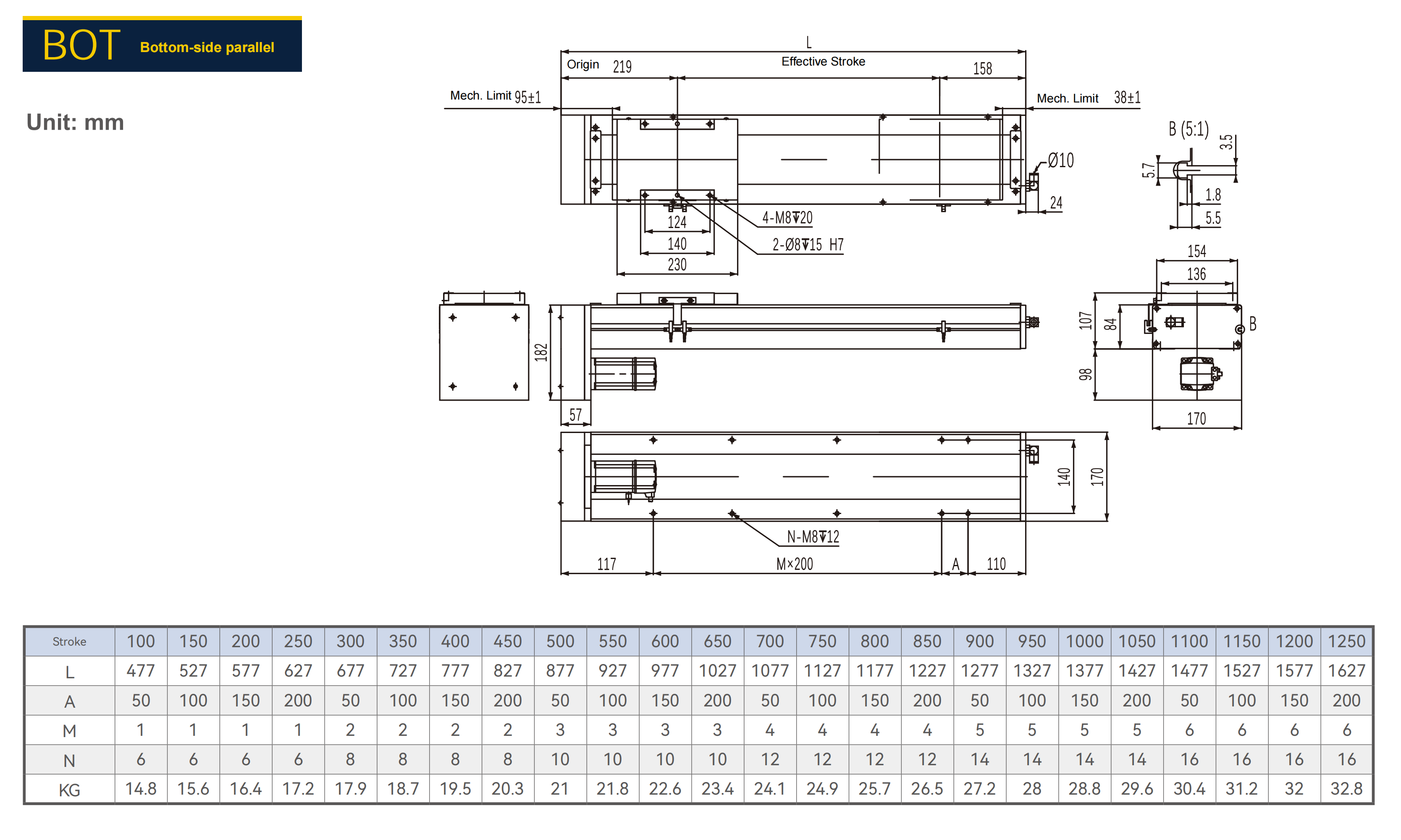

BOT Bottom-side parallel

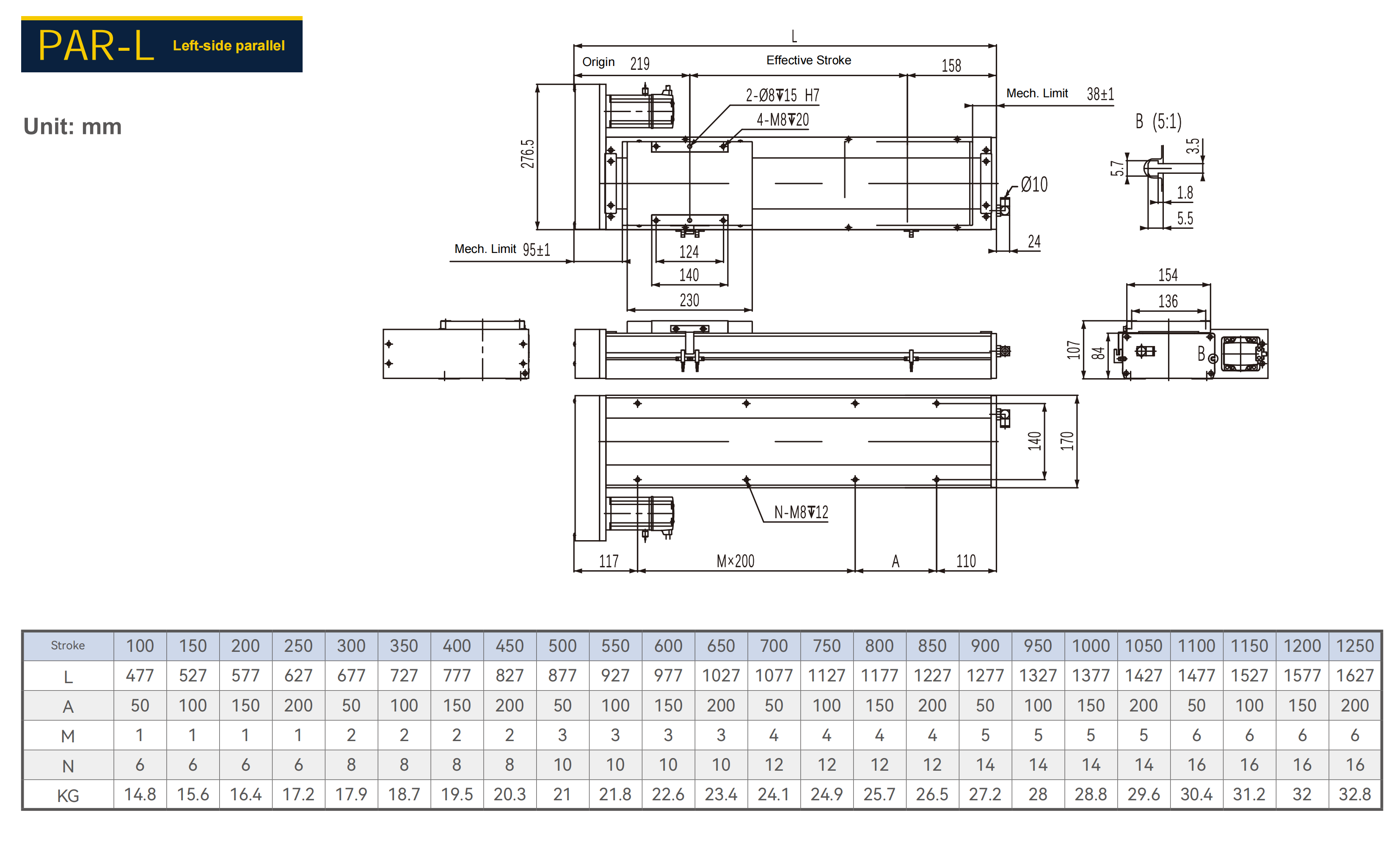

PAR-L Left-side parallel
