BTS220

BTS220 is a large semi-enclosed timing-belt linear module for long-stroke motion and heavier handling applications.

Max Stroke 3050 mm
Max Payload 85 kg Horizontal
Max Speed 2000 mm/s
Repeatability ±0.04 mm
Belt Lead 40 mm
Recommended Servo 750 W
Get a Quote

Ordering Method

BTS220
Model
Body Model / Series / width
  • BTS220 = body model
P40
Lead
Timing Belt
  • P = polyurethane
  • R = rubber
  • Lead: 40 mm
S100
Stroke
Stroke Travel Option
  • Sxxx = selected effective stroke
  • Standard range: 100–3050 mm / 50 mm pitch
TBR-L
Layout
Motor Layout
  • TBR = timing-belt reduction
  • TBR-L Left-side
  • TBR-R Right-side
  • TBR-LL Lower-left
  • TBR-LR Lower-right
  • TBR-UL Upper-left
  • TBR-UR Upper-right
T75B
Motor
Motor Code Example
  • T = Delta
  • P = Panasonic
  • Y = Yaskawa
  • C = customer
  • Motor output: 750 W
  • B = with brake
C1
Sensor
Sensor Options
  • C = motor side
  • D = opposite motor side
  • E = none
  • 0 / 1 / 2 / 3 pcs = limit sensor quantity

Detailed Specifications

Performance
ParameterVariant / ConditionSpecification
Repeatability (mm)—±0.04 mm
Standard Stroke RangeStandard product100–3050 mm / 50 mm pitch
Timing Belt Lead (mm)P40 / R4040 mm
Maximum Speed (mm/s)Rated motor speed2000 mm/s
Rated Thrust (N)Timing-belt drive368 N
Maximum Payload (kg)Horizontal / VerticalHorizontal: 85 kg
Vertical: disabled
Components
ParameterSpecification
Drive TypeTiming belt drive
Structure / EnvironmentSemi-enclosed / standard environment
Timing Belt MaterialP = polyurethane; R = rubber
Belt Width50 mm
Linear GuideW23 × H18, 2 pcs
Motor Position OptionsTBR-L / TBR-R / TBR-LL / TBR-LR / TBR-UL / TBR-UR
>

Motor Selection & Sensor Selection

Motor Selection
Motor Type
AC Servo Motor
Recommended Output
750 W
AC Voltage
220 V
Brake Option
With / without brake
Recommended Servo Motor Models
BrandBrake OptionServo Motor ModelServo Drive Model
DeltaWithout brakeECMA-C20807RSASD-B2-0721-B
DeltaWith brakeECMA-C20807SSASD-B2-0721-B
PanasonicWithout brakeMHMF082L1U2MMCDLN35SG
PanasonicWith brakeMHMF082L1V2MMCDLN35SG
YaskawaWithout brakeSGM7J08AFC6SSGD7S5R5A00A002
YaskawaWith brakeSGM7J08AFC6ESGD7S5R5A00A002
Motor Code / Selection Rule
ItemOptionsMeaning
Brand CodeT / P / Y / CT = Delta; P = Panasonic; Y = Yaskawa; C = customer-provided
Power Code75 = 750 WRecommended servo output for this model
Brake SuffixB = with brake; blank = without brakeBrake option in the motor code
Engineering NoteThe catalogue lists vertical installation as disabled for this model. Confirm payload, speed, stroke, installation direction, inertia matching and controller compatibility before final motor selection.
Sensor Selection
Home Sensor
EE-SX672 / EE-SX672P
Output Type
NPN / PNP
Voltage
DC 5–24 V
Mounting
External type
ItemOptionsMeaning
Origin SensorC / D / EC = motor side; D = opposite motor side; E = no origin sensor.
Limit Sensor0 / 1 / 2 / 3Limit sensor quantity is selected according to travel and controller requirements.
Sensor ModelEE-SX672 / EE-SX672PNPN / PNP output type is selected according to controller input type.
>

Load&Moment

Drawings

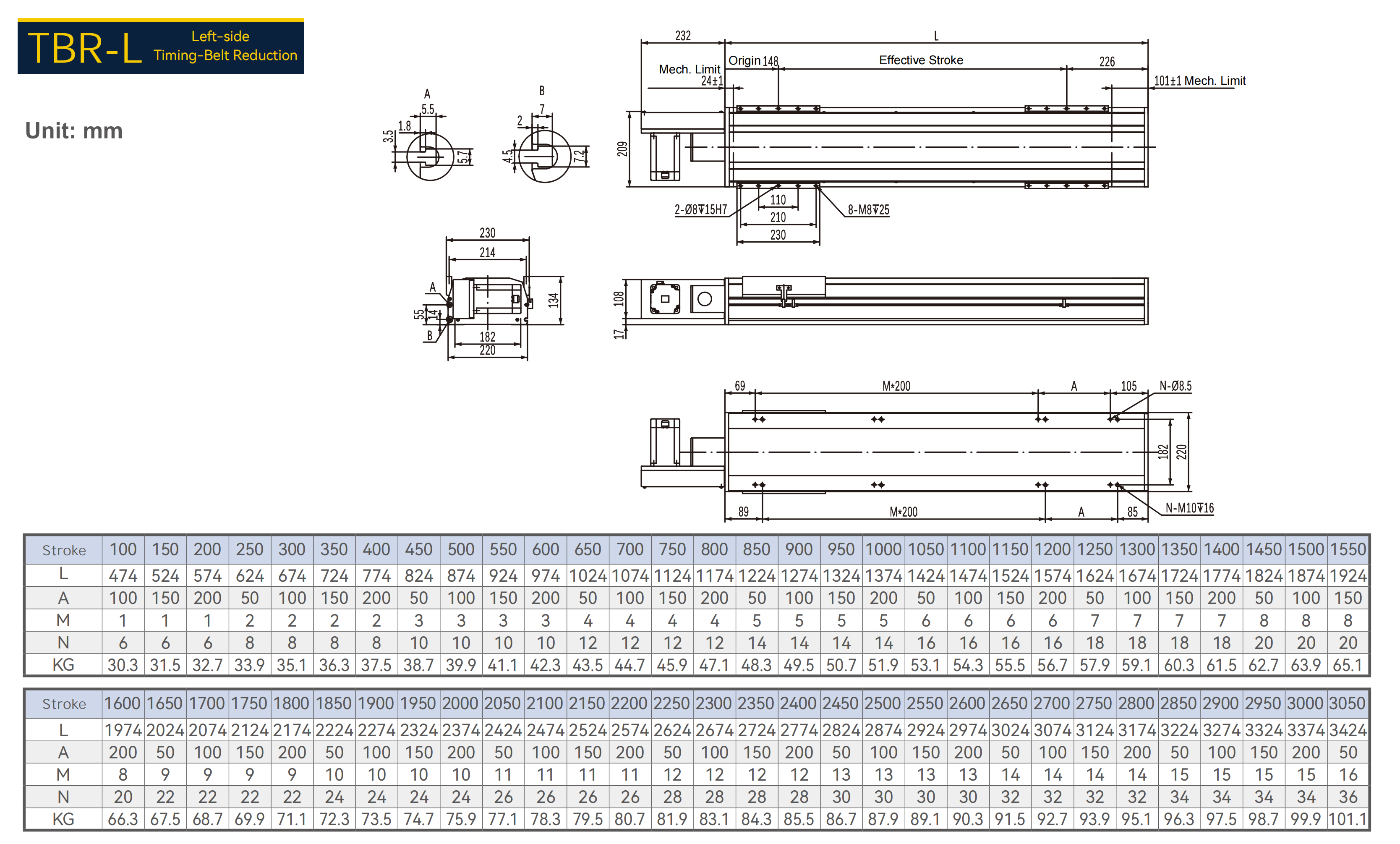

TBR-L Left-side
TBR-R Right-side

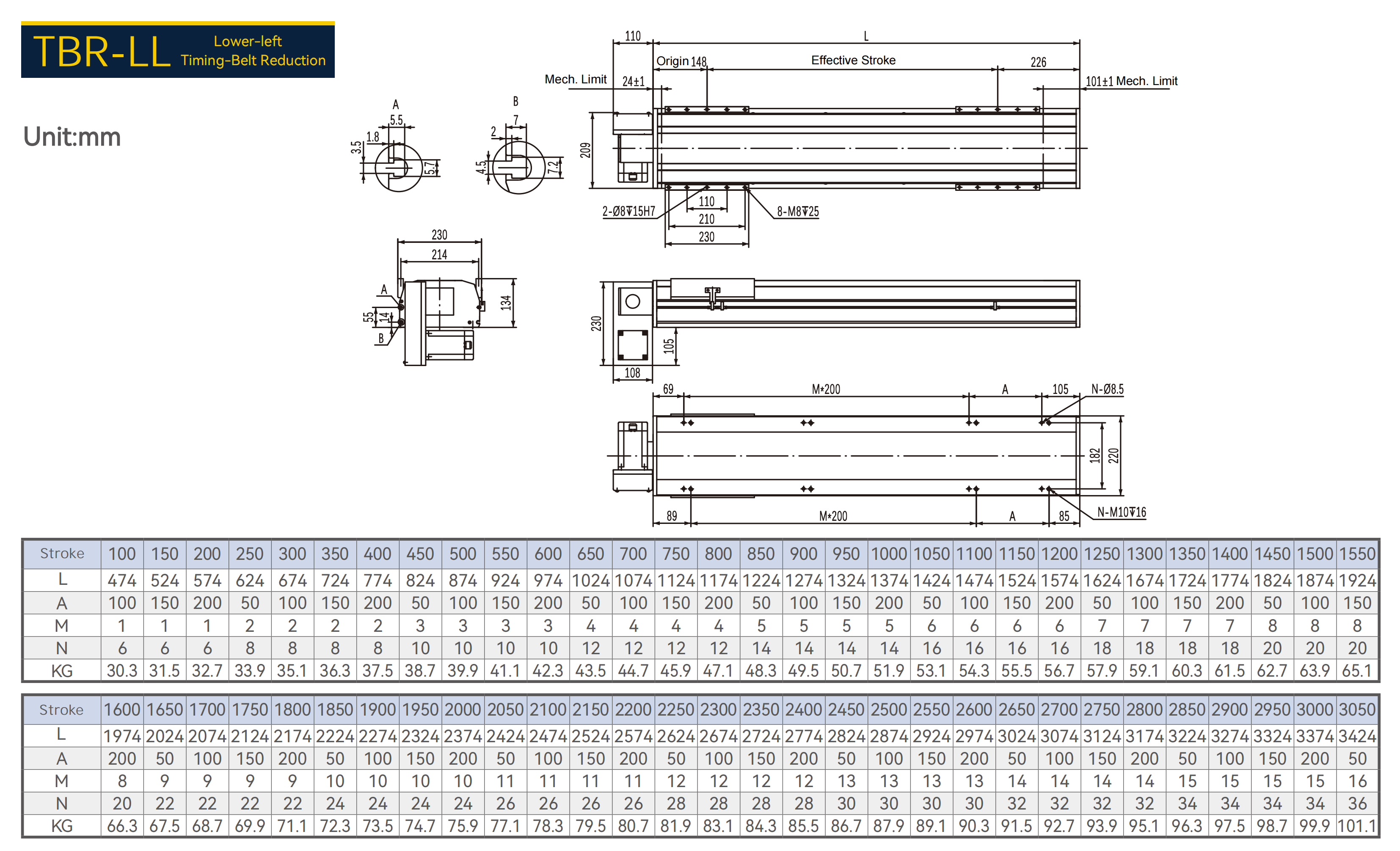

TBR-LL Lower-left

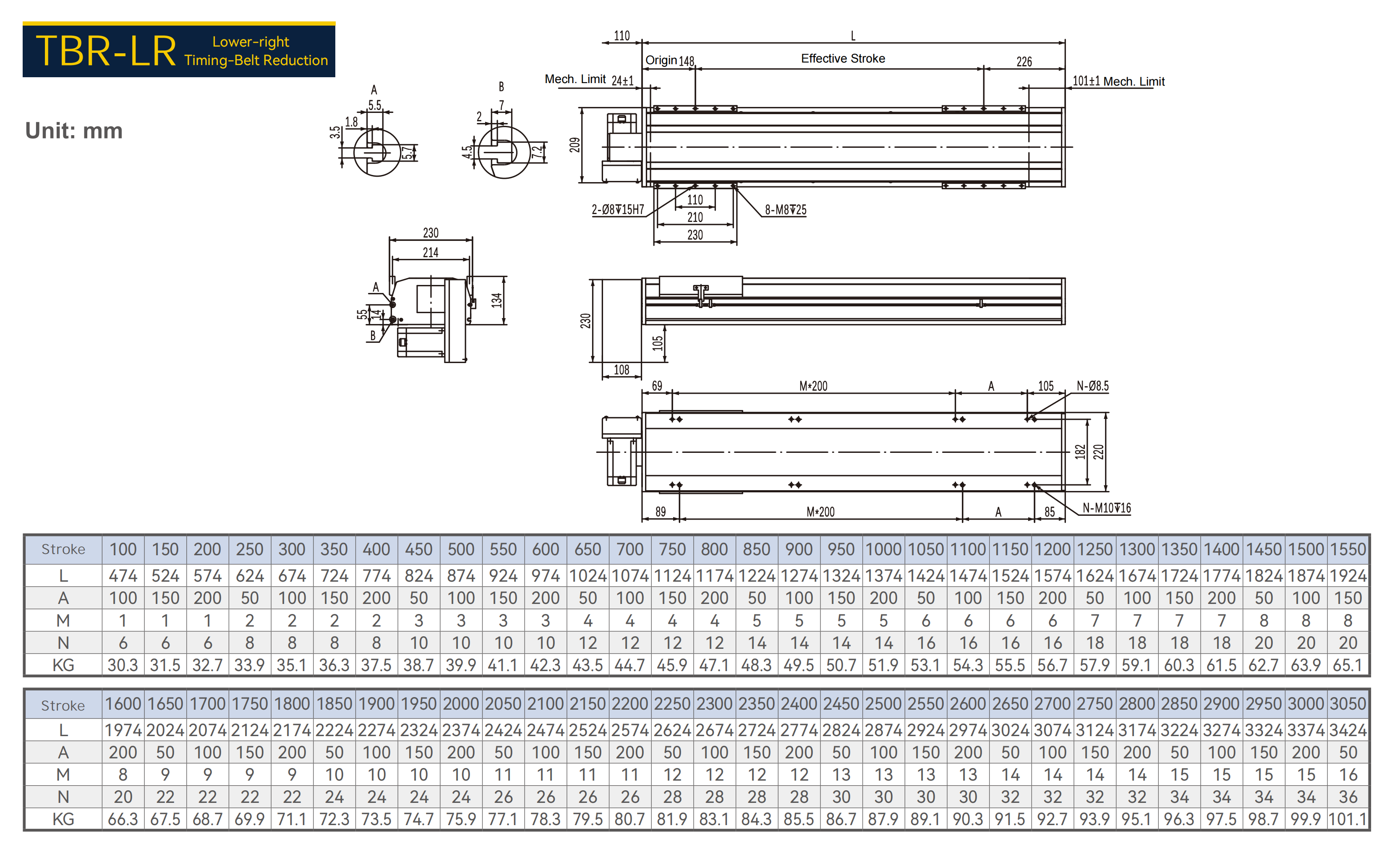

TBR-LR Lower-right

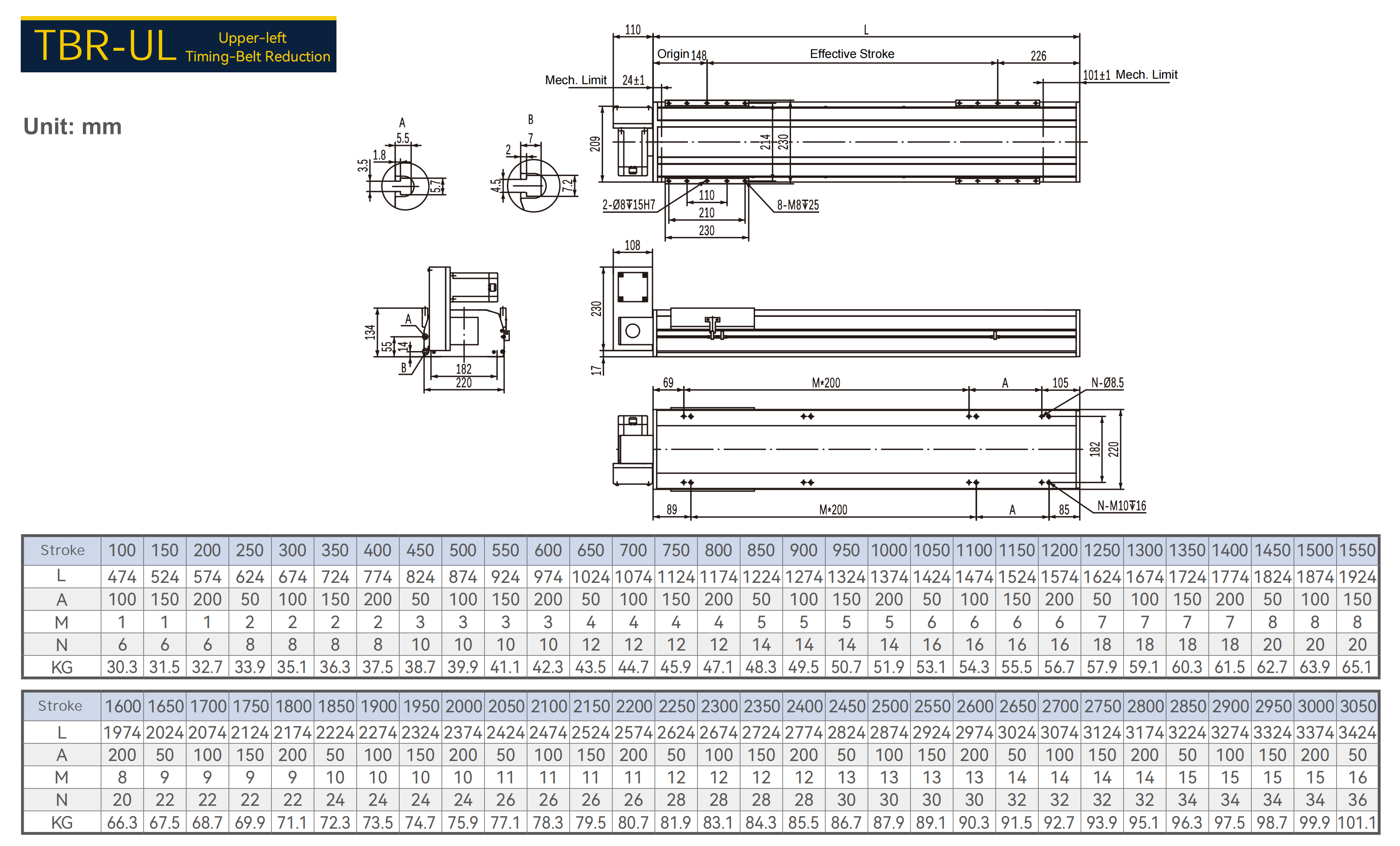

TBR-UL Upper-left

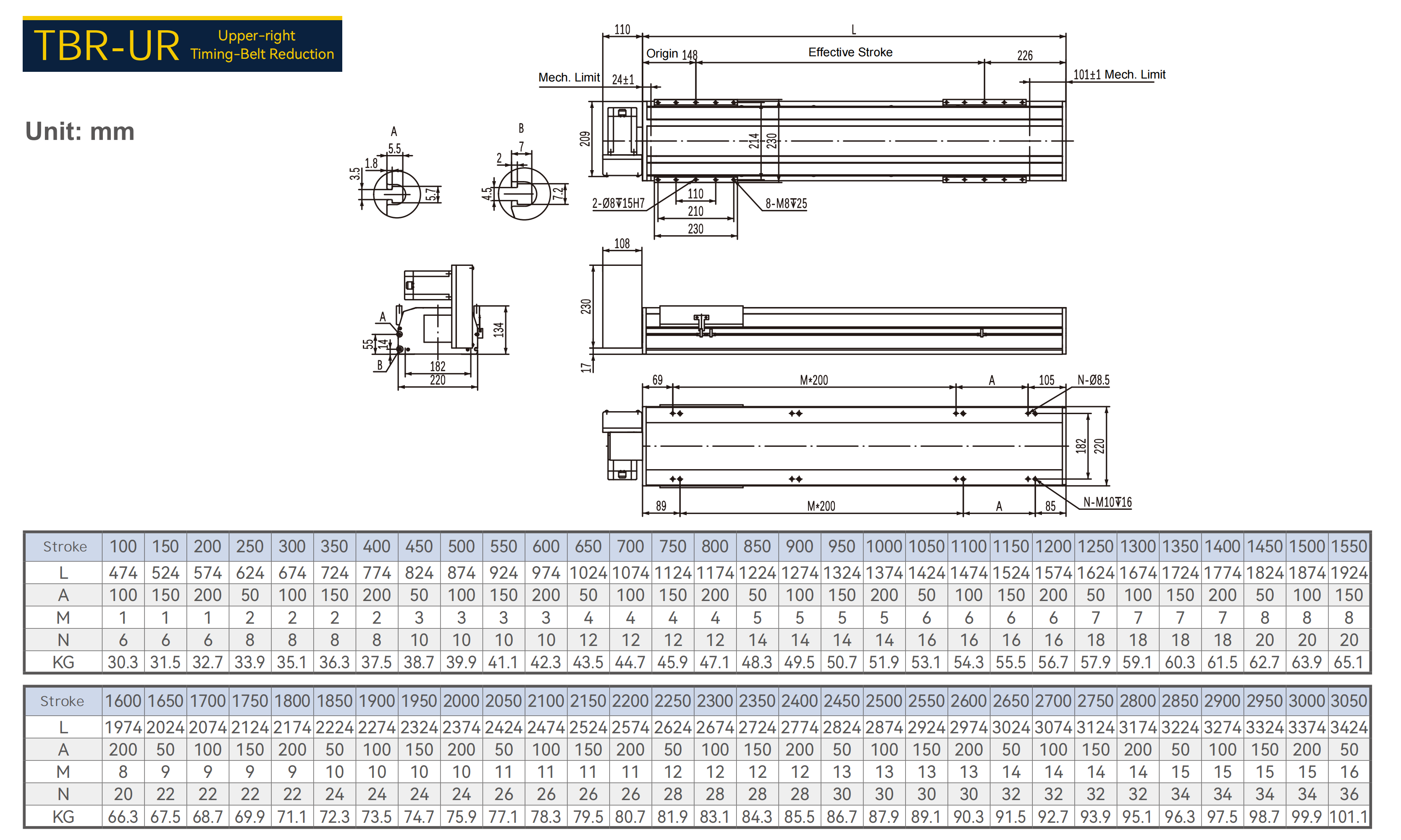

TBR-UR Upper-right
